LINK-PP LQ-LW100-L24I 100G QSFP28 LR4 Duplex LC/UPC SMF Optical Transceiver Module(SMF, 1310nm, 20km, DOM, Industrial)Features：Compliant with the QSFP28 MSA Technical Specifications.Supports operation for a data rate of 103.1Gb/s.Maximum link length of 20km on Single Mode Fiber (SMF).Optical specifications are compliant with IEEE802.3ba 100GBASE-LR4.Low speed electrical signal is compliant with SFF-8679.High speed electrical signal is compliant with 802.3bm CAUI-4.Digital diagnostic functions are available via the I2C interface, as specified by SFF-8636.4x25Gb/s DFB-based LAN-WDM

LINK-PP LQ-LW100-L24C 100G QSFP28 LR4 Duplex LC/UPC SMF Optical Transceiver Module(SMF, 1310nm, 20km, DOM)Features：Compliant with the QSFP28 MSA Technical Specifications.Supports operation for a data rate of 103.1Gb/s.Maximum link length of 20km on Single Mode Fiber (SMF).Optical specifications are compliant with IEEE802.3ba 100GBASE-LR4.Low speed electrical signal is compliant with SFF-8679.High speed electrical signal is compliant with 802.3bm CAUI-4.Digital diagnostic functions are available via the I2C interface, as specified by SFF-8636.4x25Gb/s DFB-based LAN-WDM transmitter with

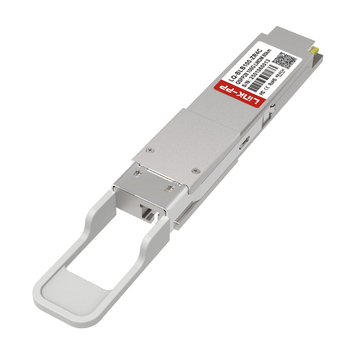

LINK-PP LQ-BLB100-ZR4C 100G QSFP28 BiDi 80km Optical Transceiver Module for Ethernet and Data Center (SMF, 1270nm-TX/1310nm-RX, LC, DOM)Product Features:Support line rates from 103.125 Gb/sLane bit rate 25.78 Gb/s 100GEUp to 80km transmission with KR4-FECLAN WDM EML laser and PIN receiver with SOASupport Multi-Pin function with IntL/RxLOSL and LPMode/TxDISHigh speed I/O electrical interface (CAUI-4)I2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorOperating case temperature: 0℃ to 70℃Single +3.3V power supplyPower dissipationCommercial：&

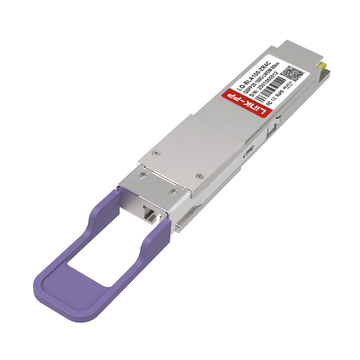

LINK-PP LQ-BLA100-ZR4C 100G QSFP28 BiDi 80km Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm-TX/1270nm-RX , LC, DOM)Product Features:Support line rates from 103.125 Gb/sLane bit rate 25.78 Gb/s 100GEUp to 80km transmission with KR4-FECLAN WDM EML laser and PIN receiver with SOASupport Multi-Pin function with IntL/RxLOSL and LPMode/TxDISHigh speed I/O electrical interface (CAUI-4)I2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorOperating case temperature: 0℃ to 70℃Single +3.3V power supplyPower

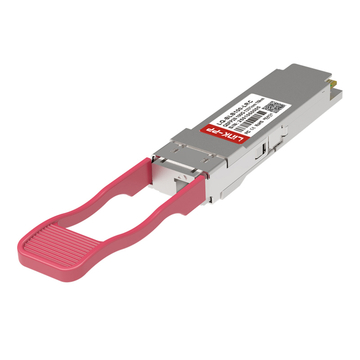

LINK-PP LQ-BLB100-LRC 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1331nm-TX/1271nm-RX, LC, DOM)Product Features:Lane signaling rate 106.25Gb/s with PAM4Up to 10km transmission on SMFEML Laser and PIN receiver4x25.78Gb/s with NRZ electrical interface (CAUI-4)Support KP4 FEC inside the moduleHigh speed I/O electrical interfaceI2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorSingle +3.3V power supplyPower consumption <3.5 WCompliant to SFF-8636&SFF-8679 standardCompliant to 100G Lambda MSA 100

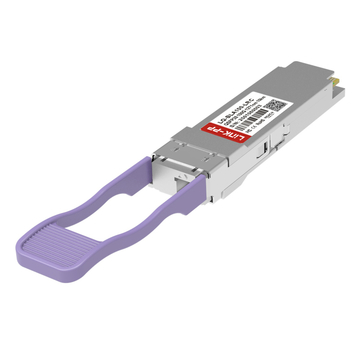

LINK-PP LQ-BLA100-LRC 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1271nm-TX/1331nm-RX, LC, DOM)Product Features:Lane signaling rate 106.25Gb/s with PAM4Up to 10km transmission on SMFEML Laser and PIN receiver4x25.78Gb/s with NRZ electrical interface (CAUI-4)Support KP4 FEC inside the moduleHigh speed I/O electrical interfaceI2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorSingle +3.3V power supplyPower consumption <3.5 WCompliant to SFF-8636&SFF-8679 standardCompliant to 100G Lambda MSA 100

LINK-PP LQ-BLB100-L2C 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1311nm-TX/1291nm-RX, LC, DOM)Product Features:Lane signaling rate 106.25Gb/s with PAM4Up to 20km transmission on SMFEML Laser and PIN receiver4x25.78Gb/s with NRZ electrical interface (CAUI-4)Support KP4 FEC inside the moduleHigh speed I/O electrical interfaceI2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorSingle +3.3V power supplyPower consumption <4 WCompliant to SFF-8636&SFF-8679 standardCompliant to 100G Lambda MSA 100G-

LINK-PP LQ-BLA100-L2C 100G QSFP28 BiDi 20km Optical Transceiver Module for Ethernet and Data Center (SMF, 1291nm-TX/1311nm-RX, LC, DOM)Product Features:Lane signaling rate 106.25Gb/s with PAM4Up to 20km transmission on SMFEML Laser and PIN receiver4x25.78Gb/s with NRZ electrical interface (CAUI-4)Support KP4 FEC inside the moduleHigh speed I/O electrical interfaceI2C interface with integrated Digital Diagnostic monitoringQSFP28 MSA package with simplex LC connectorSingle +3.3V power supplyPower consumption <4 WCompliant to SFF-8636&SFF-8679 standardCompliant to 100G Lambda MSA 100G-

LINK-PP LQ-BLB100-ERC 100G QSFP28 BiDi 40km Optical Transceiver Module for Ethernet and Data Center (SMF, 1309.14nm-TX/1304.58nm-RX, LC, DOM)Product Features:Supports 100GBASE-ER BIDI;Lane signaling rate 106.25 Gb/s with PAM4;Up to 40km transmission on SMF;EML TOSA and APD ROSA;4x25.78Gb/s with NRZ electrical interface (CAUI-4);High speed I/O electrical interface ;I2C interface with integrated Digital Diagnostic monitoring;QSFP28 MSA package with simplex LC connector;Single +3.3V power supply;Maximum power consumption 4.5 W;Operating case temperature: 0 to +70 °C;Compliant to 802.3cu, SFF-

LINK-PP LQ-BLA100-ERC 100G QSFP28 BiDi 40km Optical Transceiver Module for Ethernet and Data Center (SMF, 1304.58nm-TX/1309.14nm-RX, LC, DOM)Product Features:Supports 100GBASE-ER BIDI;Lane signaling rate 106.25 Gb/s with PAM4;Up to 40km transmission on SMF;EML TOSA and APD ROSA;4x25.78Gb/s with NRZ electrical interface (CAUI-4);High speed I/O electrical interface ;I2C interface with integrated Digital Diagnostic monitoring;QSFP28 MSA package with simplex LC connector;Single +3.3V power supply;Maximum power consumption 4.5 W;Operating case temperature: 0 to +70 °C;Compliant to 802.3cu, SFF-

LINK-PP LQ-M31100-LR4C 100GBASE-PLR4 QSFP28 Optical Transceiver Module (SMF, 1310nm, 10km, MTP/MPO, DOM)The LQ-M31100-LR4C is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for 100G Receiver Applications. The QSFP28 full-duplex optical module offers4 independent receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 10km using single mode fiber. An optical fiber ribbon cable with an MPO/MTP TM connector can be plugged into the QSFP28 module receptacle. QSFP28 PSM4 is one kind of parallel Receiver which provides increased

LINK-PP LQ-M31100-FR4C 100GBASE-PLR4L QSFP28 Optical Transceiver Module (SMF, 1310nm, 2km, MTP/MPO, DOM)The LQ-M31100-FR4 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for 100G Receiver Applications. The QSFP28 full-duplex optical module offers4 independent receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 2km using single mode fiber. An optical fiber ribbon cable with an MPO/MTP TM connector can be plugged into the QSFP28 module receptacle. QSFP28 PSM4 is one kind of parallel Receiver which provides increased port

LINK-PP LQ-LW100-ZR4I 100GBASE-ZR4 QSFP28 Duplex LC/UPC Optical Transceiver Module(SMF, 1310nm, 80km, DOM, Industrial)It is designed for 80km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1. LINK-PP Part Number LQ-LW100-ZR4I Vendor Name LINK-PP

LINK-PP LQ-LW100-ZR4C 100GBASE-ZR4 QSFP28 Duplex LC/UPC Optical Transceiver Module(SMF, 1310nm, 80km, DOM)It is designed for 80km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1. LINK-PP Part Number LQ-LW100-ZR4C Vendor Name LINK-PP Form

LINK-PP LQ-LW100-LR4I 100G QSFP28 LR4 DOM Duplex LC Optical Transceiver Module(SMF, 1310nm, 10km, DOM, Industrial)The LQ-LW100-LR4I QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 standards.  LINK-PP Part Number LQ-LW100-LR4I Vendor Name LINK-PP Form Factor QSFP28 Max Data Rate

LINK-PP LQ-BL8591100-SRC 100G QSFP28 Bidi Optical Transceiver Module (MMF,850nm/910nm,OM3 70m/OM4 100m,Duplex LC,DDM)The LINK-PP LQ-BL8591100-SRC optical transceiver is designed for using in 100-Gigabit Ethernet links up to 70m using OM3 and 100m using OM4. It is compliant with the QSFP28 MSA, IEEE802.3cm-2020 and CAUI-4(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA. The module incorporates 2 channels 850nm/910nm VCSEL and PIN photo detector, transmitting and receiving each optically over one simplex LC fiber using
