Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
127820

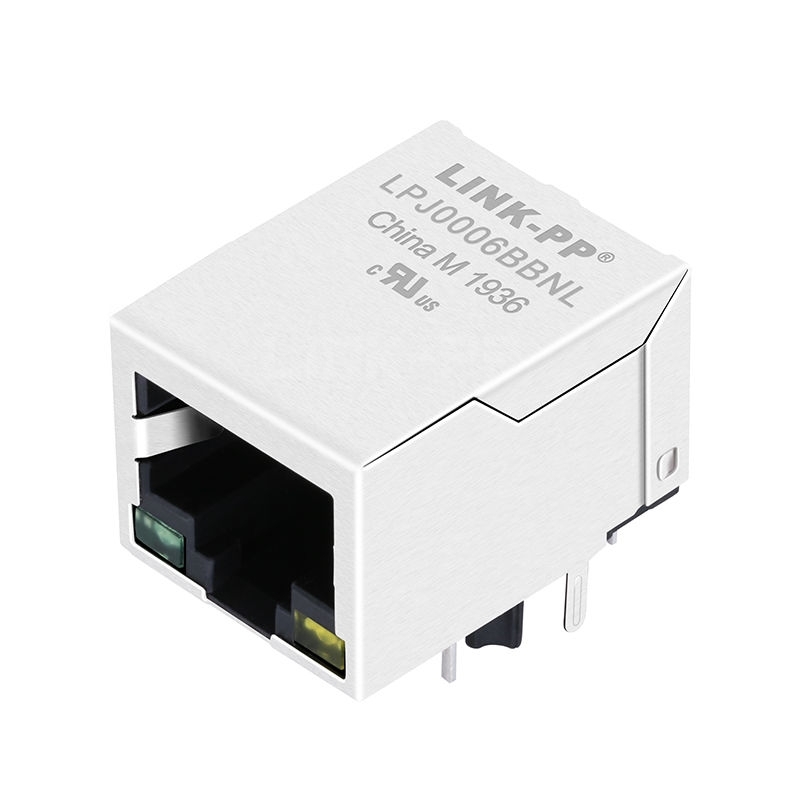

Pulse J0006D01BNL Compatible LINK-PP LPJ0006BBNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port RJ 45 Filter Connector Module
  • Pulse J0006D01BNL Compatible LINK-PP LPJ0006BBNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port RJ 45 Filter Connector Module thumb image 1
  • Pulse J0006D01BNL Compatible LINK-PP LPJ0006BBNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port RJ 45 Filter Connector Module thumb image 2
  • Pulse J0006D01BNL Compatible LINK-PP LPJ0006BBNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port RJ 45 Filter Connector Module thumb image 3
  • Pulse J0006D01BNL Compatible LINK-PP LPJ0006BBNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port RJ 45 Filter Connector Module thumb image 4
  • Pulse J0006D01BNL Compatible LINK-PP LPJ0006BBNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port RJ 45 Filter Connector Module thumb image 5

Pulse J0006D01BNL Compatible LINK-PP LPJ0006BBNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port RJ 45 Filter Connector Module

#127820
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Pulse J0006D01BNL Compatible LINK-PP LPJ0006BBNL 10/100 Base-T Tab Down Green/Yellow Led 1x1 Port RJ 45 Filter Connector Module

  • ￥  311.028

    9339 in Stock

 66 Reviews
0 Questions
Request Stock
886 Sold
￥  311.028
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
Ұ311.028
100
Ұ255.187
600
Ұ223.965
1200
Ұ171.126
6000
Ұ146.208
Manufacture: LINK-PP
P/N: LPJ0006BBNL
Compatible:
LINK-PP
Pulse
YDS
Competitor P/N:
J0006D01BNL
Shipping:
￥ 4,423.742
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
9339 in Stock .
Quantity:
Total Price:
￥ 311.028
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

Pulse J0006D01BNL Compatible LINK-PP LPJ0006BBNL 10/100 Base-T RJ 45 Filter Connector Module for Hard Disk Players and Network Card (1x1 Port, Tab Down, Green/Yellow Led)


The LPJ0006BBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card, Industrial PC, VoIP Gateways and Internet Of things Gateways.


LINK-PP Part Number:
 LPJ0006BBNL Pulse Part Number J0006D01BNL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
Down Cores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ 45 Filter Connector Module

Download

3D Model

LPJ0006BBNL Drawing
