400G QSFP-DD/OSFP/QSFP112

Cisco QDD-400G-LR4-S Compatible LINK-PP 400G QSFP-DD Specifications The Cisco QDD-400G-LR4-S Compatible LINK-PP module is a high-performance 400G QSFP-DD optical transceiver engineered for demanding data communication environments. It translates eight channels of 53.125Gb/s electrical input into four lanes of 106.25Gb/s optical signals. Compliant with IEEE 802.3bs and QSFP-DD MSA standards, this hot-pluggable module features a single 3.3V power supply and low power consumption. Cisco Part NumberQDD-400G-LR4-SVendor NameLINK-PP Max Data Rate 425Gbps Form Factor

Cisco QDD-XDR4-400G Compatible LINK-PP 400GBASE-XDR4 QSFP-DD 8 x 50G PAM4 Transceiver Module (SMF,1310nm,2km,MPO-12/APC,DOM) The Cisco QDD-XDR4-400G Compatible LINK-PP 400GBASE-XDR4 Module supports link lengths of up to 2km parallel SMF with MTP/MPO-12 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP28-FR-100G. Cisco Part NumberQDD-XDR4-400GVendor NameLINK-PP Form Factor QSFP-DD Max Data Rate 400

Cisco QDD-4X100G-LR-S Compatible LINK-PP 400G-PLR4 QSFP-DD 8 x 50G PAM4 Transceiver Module (SMF,1310nm,10km,MPO-12/APC,DDM) The Cisco QDD-4X100G-LR-S Compatible LINK-PP module is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 10km optical communication applications. The product is designed with form factor,optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi- Source Agreement(MSA). Cisco Part NumberQDD-4X100G-LR-SVendor NameLINK-PP Form Factor QSFP-DD Max Data Rate 425Gbps (4x

LINK-PP LO-M31400A-DR4C 400GBASE-FR4 OSFP 8 x 50G PAM4 Transceiver Module(SMF, 1310nm, 500m, MPO-12/APC, DOM, RHS/Flat Top) The LINK-PP LO-M31400A-DR4C 400G DR4 OSFP Optical Transceiver is an InfiniBand 400Gb/s single-port OSFP DR4 single mode parallel transceiver, featuring a Flat-top (OSFP-RHS) form factor and a single, 4-channel MPO-12/APC optical connector. The Reach 4-channel design uses 100G-PAM4 modulation and has a maximum fiber reach of 500-meters using OS2 single mode fibers. It is qualified for use in end-to-end systems. LINK-PP Part Number LO-M31400A-DR4C Vendor

Cisco QDD-ER8-400G Compatible LINK-PP 400G QSFP-DD PAM4 LWDM ER8 Transceiver Module (SMF, 1310nm, 40km, LC, DOM)  The Cisco QDD-ER8-400G Compatible LINK-PP module is a transceiver module designed for 40km optical communication applications, and it is compliant to 50G Lambda MSA standard. This module can convert 8-channel 53.125Gb/s electrical data to 8-channel optical signals, and multiplex them into a single channel for 425Gb/s optical transmission. Similarly, it optically de-multiplexes a 425Gb/s input into 8-channel signals, and converts them to 8-channel output

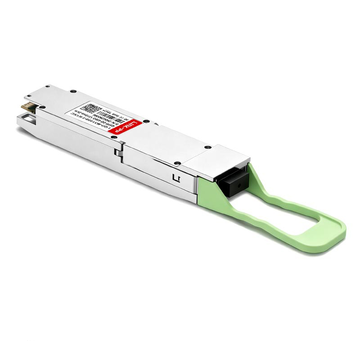

Cisco QDD-4X100G-FR-S Compatible LINK-PP 400GBASE-FR QSFP-DD 8 x 50G PAM4 Silicon Photonics Transceiver Module (SMF,1310nm,2km,MPO-12/APC,DOM) The Cisco QDD-4X100G-FR-S Compatible LINK-PP 4x 100G QSFP-DD FR1 optical transceiver that provides 4 parallel 100GE links over 4 single mode fiber (SMF) pairs via its MPO-12 connector. Each fiber pair link is compliant to 100GBASE-FR1 and thus can support a 400GE to 4x 100GE breakout over 2 km. It combines 8x 26.5625 GBd PAM4 electrical lanes into 4x 53.125 GBd PAM4 optical lanes. Superior performance and reliability is achieved

NVIDIA/Mellanox OSFP-400G-FR4 Compatible LINK-PP 400GBASE-FR4 OSFP 8 x 50G PAM4 Transceiver Module(SMF, 1310nm, 2km, Duplex LC, DOM) The NVIDIA/Mellanox OSFP-400G-FR4 Compatible LINK-PP 400G FR4 OSFP transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the OSFP MSA, IEEE P802.3cu4 and portions of P802.3bs5. Digital diagnostic functions are available via the I2C interface, as specified by the OSFP MSA. NVIDIA/Mellanox Part NumberOSFP-400G-FR4Vendor NameLINK-PP Form Factor OSFP Max Data

Cisco QDD-400G-DR4-S Compatible LINK-PP 400G QSFP-DD Specifications The Cisco QDD-400G-DR4-S Compatible LINK-PP module is a high-performance 400G QSFP-DD DR4 optical transceiver designed for 500m single-mode fiber applications. Operating via an 8-channel 53.125Gb/s PAM4 electrical interface and a 4-channel 106.25Gb/s optical architecture , it features a single 3.3V power supply , a maximum power consumption of 9.5W , and integrated digital diagnostic monitoring functions. Cisco Part NumberQDD-400G-DR4-SVendor NameLINK-PP Form Factor QSFP-DD Max Data Rate 425Gbps

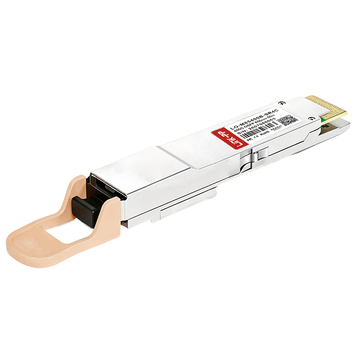

Arista OSFP-400G-VSR4 Compatible LINK-PP 400GBASE-VSR4 OSFP 8 x 50G PAM4 Transceiver Module (MMF, 850nm, 50m, MPO-12/APC, DOM) The Arista OSFP-400G-VSR4 Compatible LINK-PP Compatible OSFP optical transceiver module is designed for 400GBASE Ethernet throughput up to 50m link lengths over OM4 multimode fiber (MMF) using a wavelength of 850nm via MTP/MPO-12 APC connectors. This transceiver is compliant with CMIS 5.2, IEEE 802.3bs, IEEE 802.3db and OSFP MSA standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters.

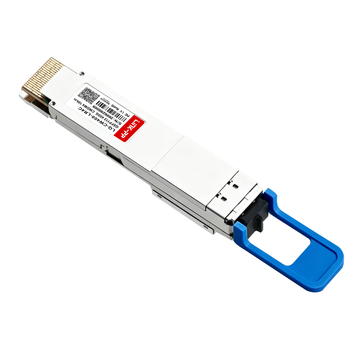

LINK-PP LQ-CW400-LR4C 400G QSFP112 Transceiver Module(SMF, 1310nm, 10km, Duplex LC, DOM) The LINK-PP LQ-CW400-LR4C is a 400Gb/s QSFP112 optical module designed for 10km optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals and converts them to 4 channels of 100Gb/s (PAM4) electrical

Cisco QDD-400G-DR4-S Compatible LINK-PP 400GBASE-DR4 QSFP-DD 8 x 50G PAM4 Silicon Photonics Optical Transceiver Module (SMF, 1310nm, 500m, MPO-12, DOM) The Cisco QDD-400G-DR4-S Compatible LINK-PP 400GBASE-DR4 silicon photonics module, MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards. Cisco Part Number QDD-400G-DR4-S Vendor Name LINK-PP Form Factor QSFP-DD Max Data Rate 425Gbps Wavelength 1310nm Max Cable Distance 500m Connector MPO-12/APC Media SMF

Cisco QSFP-400G-DR4 Compatible LINK-PP 400G QSFP112 4x100G PAM4 Transceiver Module (SMF, 1310nm, 500m, MPO-12/APC, DOM) The Cisco QSFP-400G-DR4 Compatible LINK-PP product is a 400Gb/s QSFP112 optical module designed for 0.5Km optical communication applications.The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals,each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. On the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 4

Cisco QDD-400G-SR8-S Compatible LINK-PP 400G QSFP-DD 8 x 50G PAM4 Transceiver Module (MMF, 850nm, 100m, MPO-16/APC, DOM) The Cisco QDD-400G-SR8-S Compatible LINK-PP module is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x200 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8x26.5625GBd. Each lane can operate at 53.125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber with FEC. These modules

Cisco QDD-SR4-400G Compatible LINK-PP 400GBASE-SR4 QSFP-DD 8 x 50G PAM4 Transceiver Module (MMF, 850nm, 50m, MTP/MPO-12, DOM) The Cisco QDD-SR4-400G Compatible LINK-PP module is a four-Channel, Parallel, Pluggable, Fiber-Optic QSFP-DD Module for 400Gigabit Ethernet applications. This product converts 8 channels of 26.5625GBd electrical input data to 4 channels of 53.125GBd parallel optical signals. Reversely, on the receiver side, 4 channels of parallel optical signals of 53.125GBd converts to 8 channels of 26.5625GBd electrical output data. This module is designed to operate over

Cisco QDD-400G-LR8-S Compatible LINK-PP 400GBASE-LR8 QSFP-DD 8 x 50G PAM4  Transceiver Module (SMF, 1310nm, 10km, LC, DOM)  The Cisco QDD-400G-LR8-S Compatible LINK-PP module is a transceiver module designed for 10km optical communication applications, and it is compliant to 50G Lambda MSA standard. This module can convert 8-channel 53.125Gb/s electrical data to 8- channel optical signals, and multiplex them into a single channel for 425Gb/s optical transmission. Similarly, it optically de-multiplexes a 425Gb/s input into 8-channel signals, and converts them to 8-channel output

LINK-PP LO-CW400-LR4C 400GBASE-LR4 OSFP 8 x 50G PAM4 Transceiver Module (SMF, 1271nm, 1291nm, 1311nm and 1331nm, 10km, Duplex LC, DOM, IHS/Finned Top) The LINK-PP LO-CW400-LR4C is an eight-channel electrical, four-channel optical, pluggable, single-mode fiber, OSFP transceiver for 400G Ethernet applications. It converts eight host electrical data lanes in each direction at 53.125Gbps into four optical lanes at 106.25Gbps, and multiplexes them into one single-mode fiber for 425Gb/s optical transmission.Each electrical lane operates at 26.5625 GBd / 53.125 Gbps (PAM4
