Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
117543

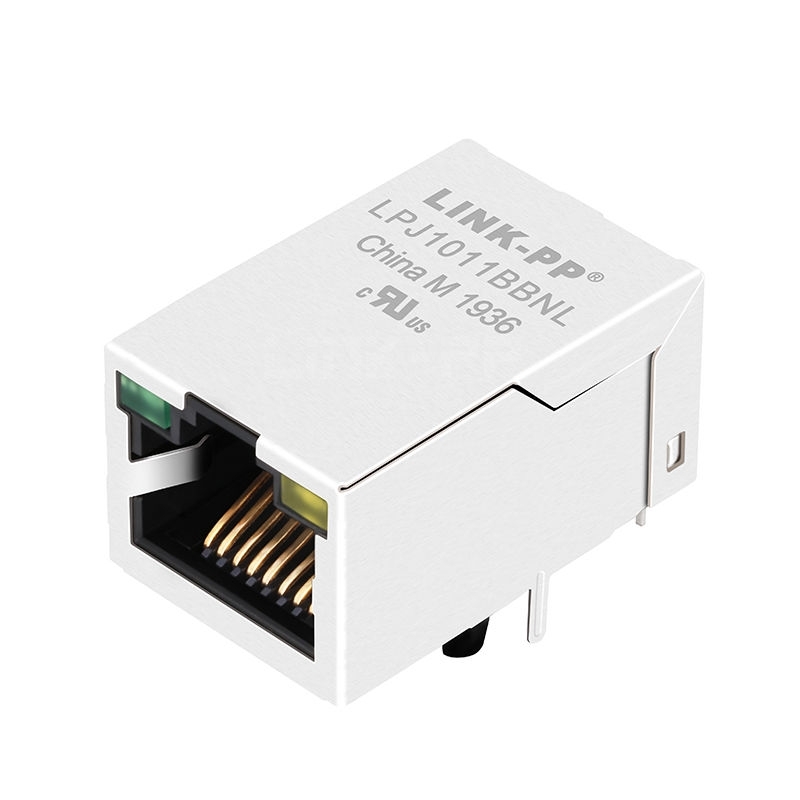

Pulse J1011F01P Compatible LINK-PP LPJ1011BBNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magnetic Modular Jacks
  • Pulse J1011F01P Compatible LINK-PP LPJ1011BBNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magnetic Modular Jacks thumb image 1
  • Pulse J1011F01P Compatible LINK-PP LPJ1011BBNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magnetic Modular Jacks thumb image 2
  • Pulse J1011F01P Compatible LINK-PP LPJ1011BBNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magnetic Modular Jacks thumb image 3
  • Pulse J1011F01P Compatible LINK-PP LPJ1011BBNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magnetic Modular Jacks thumb image 4
  • Pulse J1011F01P Compatible LINK-PP LPJ1011BBNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magnetic Modular Jacks thumb image 5

Pulse J1011F01P Compatible LINK-PP LPJ1011BBNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magnetic Modular Jacks

#117543
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Pulse J1011F01P Compatible LINK-PP LPJ1011BBNL 10/100 Base-T Tab Up Green/Yellow Led Single Port Magnetic Modular Jacks

  • ￥  357.412

    990 in Stock

 86 Reviews
1 Questions
Request Stock
92.6K Sold
￥  357.412
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
￥ 357.412
100
￥ 293.165
600
￥ 257.439
1200
￥ 196.645
6000
￥ 168.124
Manufacture: LINK-PP
P/N: LPJ1011BBNL
Compatible:
LINK-PP
Pulse
WE
Competitor P/N:
J1011F01P
J1011F01PNL
Shipping:
￥ 4,423.742
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
990 in Stock .
Quantity:
Total Price:
￥ 357.412
Packaging Details:
0.009kg
Tray
50pcs
1000pcs
32*30*31cm
8.5kg
Add to wish

Pulse J1011F01P Compatible LINK-PP LPJ1011BBNL 10/100 Base-T Magnetic Modular Jacks for Digital Camera and Smart Meters (Single Port, Tab Up, Green/Yellow Led)


The LPJ1011BBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Game Controller, Patient Care and Game Controller


LINK-PP Part Number:
 LPJ1011BBNL Pulse Part Number J1011F01P
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.530/13.45Package Length (Inches/mm)

0.994/25.25

Package Width (Inches)
0.636/16.15Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Magnetic Modular Jacks

Download

Product Drawing

3D Model
