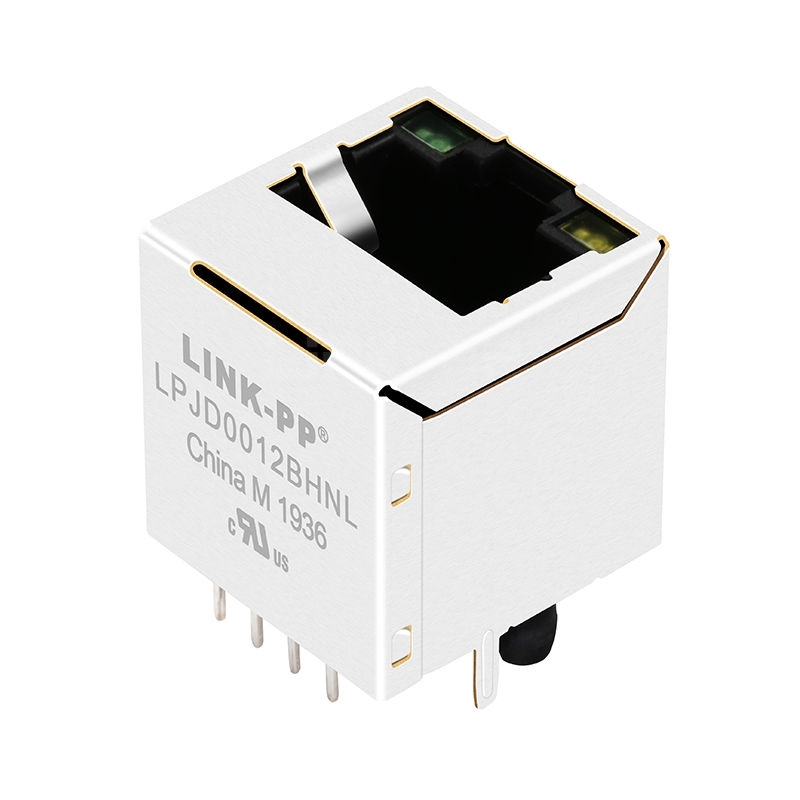

Pulse J1AT11ZCC2 Compatible LINK-PP LPJD0012BHNL 10/100 Base-T Green/Yellow LED Vertical Integrated RJ-45 Connector

Name: Pulse J1AT11ZCC2 Compatible LINK-PP LPJD0012BHNL 10/100 Base-T Green/Yellow LED Vertical Integrated RJ-45 Connector
Brand: link-pp
SKU: 97267
Price: 4.27 cad
Availability: InStock
Rating: 5 (11 reviews)

#97267

For Order Over $2000 Get $50.00 Off, Code:

Linkpp50

For Order Over $3000 Get $100.00 Off, Code:

Linkpp100

For Order Over $300 Get $30.00 Off, Code:

Christmas

: Pulse J1AT11ZCC2 Compatible LINK-PP LPJD0012BHNL 10/100 Base-T Green/Yellow LED Vertical Integrated RJ-45 Connector

11 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

11 Reviews

1 Questions

Request Stock

7.8K Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

C$ 4.269

100

C$ 3.502

600

C$ 3.075

1200

C$ 2.349

6000

C$ 2.008

Manufacture: LINK-PP

P/N: LPJD0012BHNL

Compatible:: LINK-PP; Pulse; X Multiple

Competitor P/N:: J1AT11ZCC2

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Packaging Details:

N.W/pcs: 0.008kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 32*30*31cm
G.W/carton: 9kg

Add to wish

You May Also Like

LP11BC01000 SFP+ 1x1 Cage Press-Fit With EMI Spring Finger

C$ 1.713 ~~C$ 0.00~~
800 Sold
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe

C$ 1.713 ~~C$ 0.00~~
9.8K Sold
LP11AC02060 SFP 1x1 Cage With EMI Spring Finger Heat Sink Press-Fit Through Hole

C$ 7.124 ~~C$ 0.00~~
1.3K Sold
LINK-PP LP11BC02201 1x1 Port SFP+ Cage With Lightpipe

C$ 1.713 ~~C$ 0.00~~
9.1K Sold
Pulse E81M0-002-02-LT 20 Position SFP+ 1x1 Receptacle Connector Solder Surface Mount Right Angle Compatible LINK-PP LP11B000001

C$ 0.562 ~~C$ 0.00~~
560 Sold
LP22CC01103 SFP28 2X2 Cage&Connector With EMI Spring Finger Light Pipe

C$ 19.317 ~~C$ 0.00~~
105 Sold
LINK-PP LP11BC02000D SFP+ 1x1 Cage With Grounding Pin

C$ 1.713 ~~C$ 0.00~~
3.5K Sold
LINK-PP LP11BCS2101 SFP+ Cage Single Port With Light pipe

C$ 1.713 ~~C$ 0.00~~
6.8K Sold
Pulse E81M0-002-01-LT Compatible LP11B000001 SFP+ 1x1 Receptacle Connector Solder Surface Mount 20 Position, Right Angle

C$ 0.562 ~~C$ 0.00~~
498 Sold
LINK-PP LP11BCS2201 1x1 Port SFP+ Cage With Light pipe

C$ 1.713 ~~C$ 0.00~~
6.2K Sold
LP21CC01103D SFP28 2x1 Cage With EMI Spring Finger Light Pipe

C$ 11.097 ~~C$ 0.00~~
105 Sold
LP11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole Right Angle

C$ 1.713 ~~C$ 0.00~~
1.1K Sold
LP11B000001 SFP+ 1x1 Receptacle Connector Solder Surface Mount 20 Position, Right Angle

C$ 0.562 ~~C$ 0.00~~
398 Sold
LP11BC02030 SFP+ Cage With Heat Sink EMI Spring Finger Press-Fit Through Hole, Right Angle

C$ 1.713 ~~C$ 0.00~~
1.7K Sold
TE 2007198-1 Compatible LINK-PP LP11BC02000D SFP+ 1x1 Cage Press-Fit With Grounding Pin

C$ 1.713 ~~C$ 0.00~~
3.5K Sold

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Pulse J1AT11ZCC2 Compatible LINK-PP LPJD0012BHNL 10/100 Base-T Vertical Integrated RJ-45 Connector For Network Firewall ( Top entry Green/Yellow LED)

The LPJD0012BHNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Machine Inverter,Router.

LINK-PP Part Number:	LPJD0012BHNL	Pulse Part Number	J1AT11ZCC2
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100 Base-T
Latch	Up	Cores per Port	4
Orientation	180° Angle (Right)	PCB Mount Angle	THT Solder
Shield EMI Tabs	Without	LED Option	Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.665/16.90	Package Length (Inches/mm)	0.667/16.95
Package Width (Inches/mm)	0.630/16.00	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

RJ45 Female Connector

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

LPJD0012BHNL Drawing

PDF
LPJD0012BHNL-Drawing.pdf

3D Model

ZIP
LPJD0012BHNL.zip

Questions & Answers
Ask a Question

No data

Q: What is the relation between LPJD0012BHNL and J1AT11ZCC2? By J***t on 2020-08-06

A: LINK-PP part LPJD0012BHNL can 100% cross to J1AT11ZCC2,It’s the same part.By adminon 2020-08-06
