Home
Modular Jack
RJ45 Jack without Magnetics
8P8C RJ45 Jack
107201

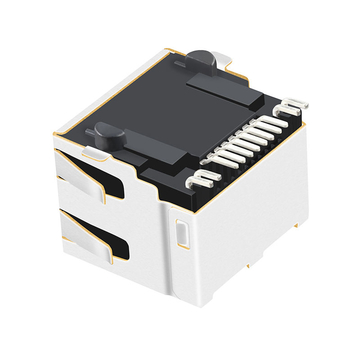

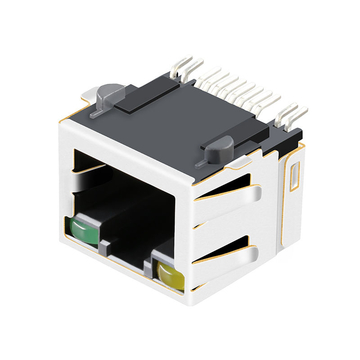

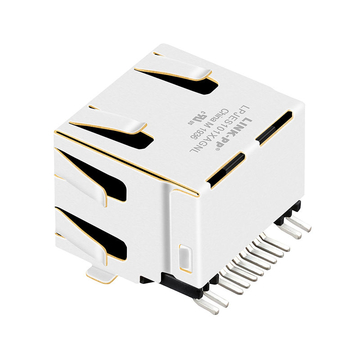

WE 634008137521 Compatible LINK-PP LPJES101XAGNL Single Port RJ45 Connector without Integrated Magnetics Tab Up Yellow/Green LED
  • WE 634008137521 Compatible LINK-PP LPJES101XAGNL Single Port RJ45 Connector without Integrated Magnetics Tab Up Yellow/Green LED thumb image 1
  • WE 634008137521 Compatible LINK-PP LPJES101XAGNL Single Port RJ45 Connector without Integrated Magnetics Tab Up Yellow/Green LED thumb image 2
  • WE 634008137521 Compatible LINK-PP LPJES101XAGNL Single Port RJ45 Connector without Integrated Magnetics Tab Up Yellow/Green LED thumb image 3
  • WE 634008137521 Compatible LINK-PP LPJES101XAGNL Single Port RJ45 Connector without Integrated Magnetics Tab Up Yellow/Green LED thumb image 4
  • WE 634008137521 Compatible LINK-PP LPJES101XAGNL Single Port RJ45 Connector without Integrated Magnetics Tab Up Yellow/Green LED thumb image 5

WE 634008137521 Compatible LINK-PP LPJES101XAGNL Single Port RJ45 Connector without Integrated Magnetics Tab Up Yellow/Green LED

#107201
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

WE 634008137521 Compatible LINK-PP LPJES101XAGNL Single Port RJ45 Connector without Integrated Magnetics Tab Up Yellow/Green LED

  • R$  3.296

    70 in Stock

 0 Questions
Request Stock
21.8K Sold
R$  3.296
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
100
R$ 3.296
1000
R$ 2.969
5000
R$ 2.871
10000
R$ 2.802
15000
R$ 2.705
Manufacture: LINK-PP
P/N: LPJES101XAGNL
Compatible:
LINK-PP
WE
Competitor P/N:
634008137521
Shipping:
R$ 144.109
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
70 in Stock .
Quantity:
Total Price:
R$ 3.296
Packaging Details:
0.007kg
Reel
200pcs
1600pcs
39*39*40.5cm
11.5kg
Add to wish

WE 634008137521 Compatible LINK-PP LPJES101XAGNL RJ45 Connector without Integrated Magnetics for Smart Camera and Monitoring System(Single Port , Tab Up ,Yellow/Green LED)


The LPJES101XAGNL supports speed 10/100 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Embedded Main Board,Entrance Guard System, switch and router.


LINK-PP Part Number:
 LPJES101XAGNL
 WE Part Number 634008137521
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
-
Latch
UPCores per Port
-
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Yellow/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.591/15.00Package Length (Inches/mm)

0.616/15.65

Package Width (Inches/mm)
0.646/16.40Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Female Connector
