Integrated RJ45 Connector
Stacked RJ45 Connector
2x4 Port RJ45 Connector
138594

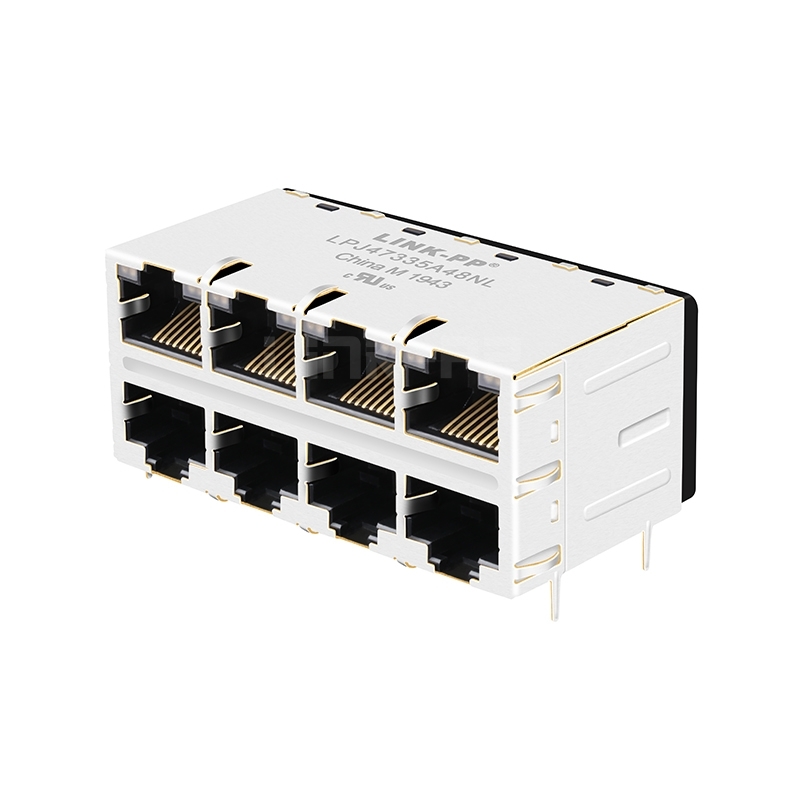

Pulse JX20-0254NL Compatible LINK-PP LPJ47335A48NL 10/100 Base-T Green&Orange/Green&Orange Led 2x4 Port RJ45 Ethernet Connectors
  • Pulse JX20-0254NL Compatible LINK-PP LPJ47335A48NL 10/100 Base-T Green&Orange/Green&Orange Led 2x4 Port RJ45 Ethernet Connectors thumb image 1
  • Pulse JX20-0254NL Compatible LINK-PP LPJ47335A48NL 10/100 Base-T Green&Orange/Green&Orange Led 2x4 Port RJ45 Ethernet Connectors thumb image 2
  • Pulse JX20-0254NL Compatible LINK-PP LPJ47335A48NL 10/100 Base-T Green&Orange/Green&Orange Led 2x4 Port RJ45 Ethernet Connectors thumb image 3
  • Pulse JX20-0254NL Compatible LINK-PP LPJ47335A48NL 10/100 Base-T Green&Orange/Green&Orange Led 2x4 Port RJ45 Ethernet Connectors thumb image 4
  • Pulse JX20-0254NL Compatible LINK-PP LPJ47335A48NL 10/100 Base-T Green&Orange/Green&Orange Led 2x4 Port RJ45 Ethernet Connectors thumb image 5

Pulse JX20-0254NL Compatible LINK-PP LPJ47335A48NL 10/100 Base-T Green&Orange/Green&Orange Led 2x4 Port RJ45 Ethernet Connectors

#138594
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Pulse JX20-0254NL Compatible LINK-PP LPJ47335A48NL 10/100 Base-T Green&Orange/Green&Orange Led 2x4 Port RJ45 Ethernet Connectors

  • ￥  4,002.984

    1500 in Stock

 10 Reviews
1 Questions
Request Stock
3.5K Sold
￥  4,002.984
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
￥ 4,002.984
100
￥ 3,322.535
600
￥ 2,842.183
1200
￥ 2,521.999
6000
￥ 2,241.743
Manufacture: LINK-PP
P/N: LPJ47335A48NL
Compatible:
LINK-PP
Pulse
Competitor P/N:
JX20-0254NL
Shipping:
￥ 4,423.742
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1500 in Stock .
Quantity:
Total Price:
￥ 4,002.984
Packaging Details:
0.051kg
Tray
12pcs
216pcs
37*30*30cm
11kg
Add to wish

Pulse JX20-0254NL Compatible LINK-PP LPJ47335A48NL 10/100 Base-T RJ45 Ethernet Connectors for Intercom and Entrance Guard System (2x4 Port, Green&Orange/Green&Orange Led)


The LPJ47335A48NL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Hub, Switches, Intercom and Entrance Guard System.


Product Specification

LINK-PP Part Number:
 LPJ47335A48NL Pulse Part Number JX20-0254NL
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
2x4 Port
Speed
10/100 Base-T
Latch
BothCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green&Orange/Green&Orange Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.260/32

Package Width (Inches/mm)
2.330/59.18
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Ethernet Connectors
