Home
Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
169506

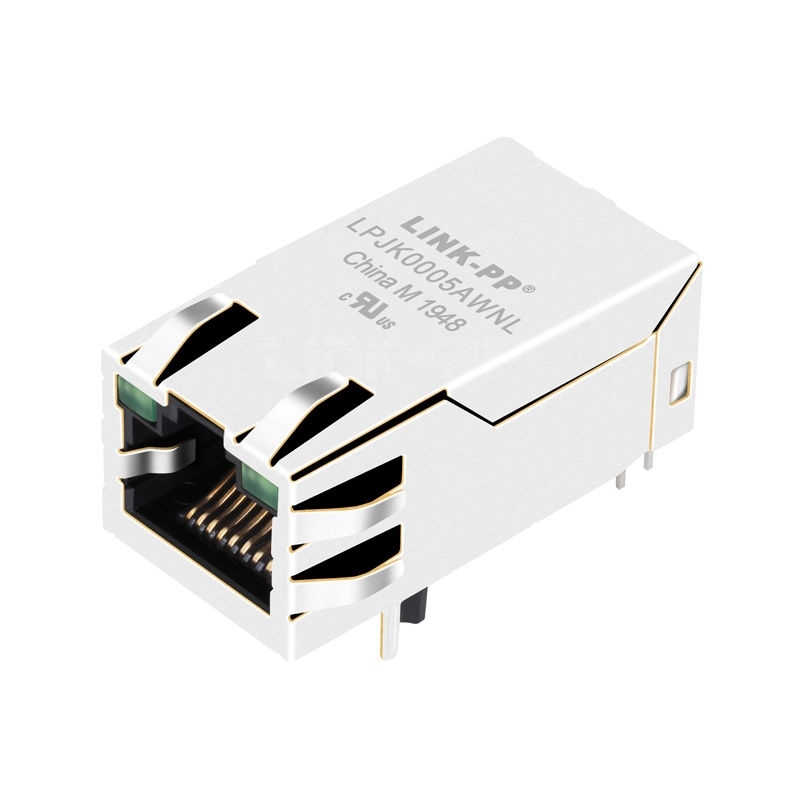

LPJK0005AWNL 10/100 Base-T 1x1 Port Magnetic RJ45 Connector Tab Up Green/Green Led
  • LPJK0005AWNL 10/100 Base-T 1x1 Port Magnetic RJ45 Connector Tab Up Green/Green Led thumb image 1
  • LPJK0005AWNL 10/100 Base-T 1x1 Port Magnetic RJ45 Connector Tab Up Green/Green Led thumb image 2
  • LPJK0005AWNL 10/100 Base-T 1x1 Port Magnetic RJ45 Connector Tab Up Green/Green Led thumb image 3
  • LPJK0005AWNL 10/100 Base-T 1x1 Port Magnetic RJ45 Connector Tab Up Green/Green Led thumb image 4
  • LPJK0005AWNL 10/100 Base-T 1x1 Port Magnetic RJ45 Connector Tab Up Green/Green Led thumb image 5

LPJK0005AWNL 10/100 Base-T 1x1 Port Magnetic RJ45 Connector Tab Up Green/Green Led

#169506
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJK0005AWNL 10/100 Base-T 1x1 Port Magnetic RJ45 Connector Tab Up Green/Green Led

  • ฿  125.103

    1200 in Stock

 65 Reviews
1 Questions
Request Stock
800 Sold
฿  125.103
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
฿ 125.103
100
฿ 102.615
600
฿ 90.094
1200
฿ 68.812
6000
฿ 58.81
Manufacture: LINK-PP
P/N: LPJK0005AWNL
Compatible:
LINK-PP
Belfuse
Competitor P/N:
LPJK0005AWNL
Shipping:
฿ 1,045.301
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1200 in Stock .
Quantity:
Total Price:
฿ 125.103
Packaging Details:
0.011kg
Tray
60pcs
960pcs
37*30*30cm
10.1kg
Add to wish

LINK-PP LPJK0005AWNL 10/100 Base-T Magnetic RJ45 Connector for Media Player and Game Controller (1x1 Port, Tab Up, Green/Green Led)


The LPJK0005AWNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, , Ethernet Control and Game Controller.


LINK-PP Part Number:
 LPJK0005AWNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 12p8c (RJ45, Ethernet) Application-Lan
 Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.28/32.50

Package Width (Inches)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Magnetic RJ45 Connector 100 Base-T

Download

LPJK0005AWNL Drawing

3D Model

Questions & Answers

 Ask a Question

  • Q: How about the MOQ? By C***n on 2021-10-13

    A: NO MOQ , 1pcs OK . Small order welocome.By adminon 2021-10-13
