Integrated RJ45 Connector
Low-Profile RJ45 Connector
10/100 Base-T RJ45 Connector
172448
Belfuse L8AL-1XX1-ED Compatible LPJK7401DNL 100 Base-T Low Profile RJ45 Magjack Tab Up Without Led

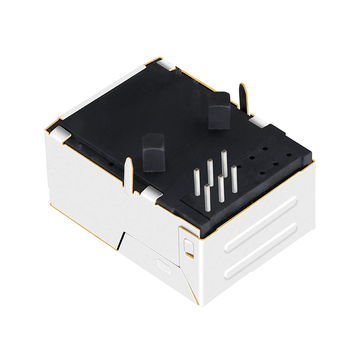

  • Belfuse L8AL-1XX1-ED Compatible LPJK7401DNL 100 Base-T Low Profile RJ45 Magjack Tab Up Without Led thumb image 1

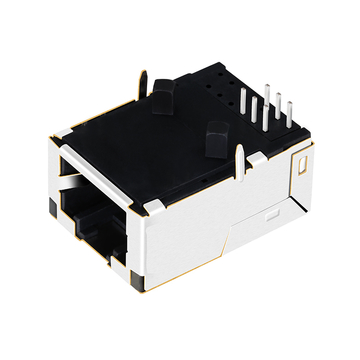

  • Belfuse L8AL-1XX1-ED Compatible LPJK7401DNL 100 Base-T Low Profile RJ45 Magjack Tab Up Without Led thumb image 2

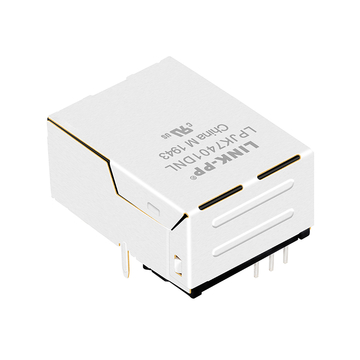

  • Belfuse L8AL-1XX1-ED Compatible LPJK7401DNL 100 Base-T Low Profile RJ45 Magjack Tab Up Without Led thumb image 3

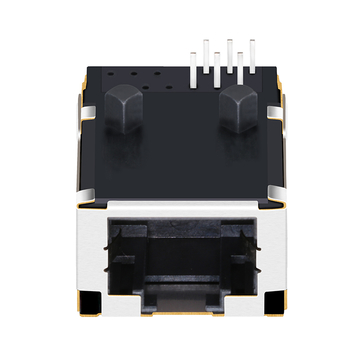

  • Belfuse L8AL-1XX1-ED Compatible LPJK7401DNL 100 Base-T Low Profile RJ45 Magjack Tab Up Without Led thumb image 4
  • Belfuse L8AL-1XX1-ED Compatible LPJK7401DNL 100 Base-T Low Profile RJ45 Magjack Tab Up Without Led thumb image 5

Belfuse L8AL-1XX1-ED Compatible LPJK7401DNL 100 Base-T Low Profile RJ45 Magjack Tab Up Without Led

#172448
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Belfuse L8AL-1XX1-ED Compatible LPJK7401DNL 100 Base-T Low Profile RJ45 Magjack Tab Up Without Led

  • Rp  54,166.793

    1880 in Stock

 32 Reviews
0 Questions
Request Stock
21.1K Sold
Rp  54,166.793
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
Rp 54,166.793
100
Rp 44,430.168
600
Rp 39,008.815
1200
Rp 29,801.862
6000
Rp 25,471.011
Manufacture: LINK-PP
P/N: LPJK7401DNL
Compatible:
LINK-PP
Belfuse
Compatible P/N:
L8AL-1XX1-ED
Shipping:
Rp 459,101.342
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1880 in Stock .
Quantity:
Total Price:
Rp 54,166.793
Packaging Details:
0.01kg
Tray
50pcs
1200pcs
40*32*33cm
12.3kg
Add to wish

Belfuse L8AL-1XX1-ED Compatible LINK-PP LPJK7401AGNL 10/100 Base-T Low Profile RJ45 Magjack For New Energy ( Height 11.30mm,Without Led,Tab Up)


The LPJK7401DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .


LINK-PP Part Number:
 LPJK7401DNL Belfuse Part Number
 L8AL-1XX1-ED
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/11.30
Package Length (Inches/mm)

0.957/24.30

Package Width (Inches/mm)
0.701/17.80
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Low Profile RJ45 Magjack
