Integrated RJ45 Connector
Multi-Port RJ45 Connector
1x8 Port RJ45 Connector
174415

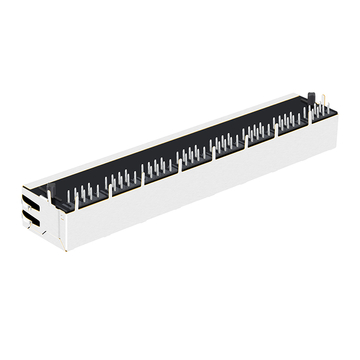

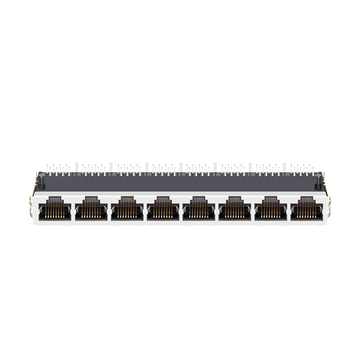

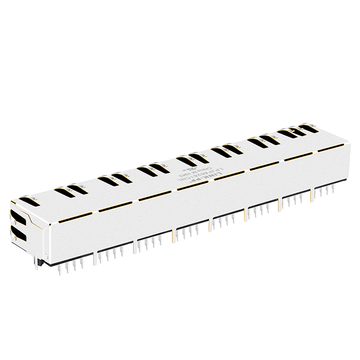

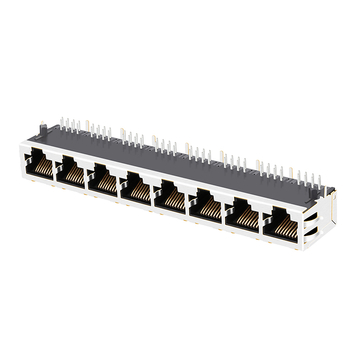

LPJF86261CNL RJ45 1x8 Port Jacks With Magnetics 10/100 Base-T Tab Down Without LED
  • LPJF86261CNL RJ45 1x8 Port Jacks With Magnetics 10/100 Base-T Tab Down Without LED thumb image 1
  • LPJF86261CNL RJ45 1x8 Port Jacks With Magnetics 10/100 Base-T Tab Down Without LED thumb image 2
  • LPJF86261CNL RJ45 1x8 Port Jacks With Magnetics 10/100 Base-T Tab Down Without LED thumb image 3
  • LPJF86261CNL RJ45 1x8 Port Jacks With Magnetics 10/100 Base-T Tab Down Without LED thumb image 4
  • LPJF86261CNL RJ45 1x8 Port Jacks With Magnetics 10/100 Base-T Tab Down Without LED thumb image 5

LPJF86261CNL RJ45 1x8 Port Jacks With Magnetics 10/100 Base-T Tab Down Without LED

#174415
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJF86261CNL RJ45 1x8 Port Jacks With Magnetics 10/100 Base-T Tab Down Without LED

  • €  18.647

    1630 in Stock

 35 Reviews
0 Questions
Request Stock
8.7K Sold
€  18.647
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
€ 18.647
100
€ 15.478
600
€ 13.24
1200
€ 11.748
6000
€ 10.442
Manufacture: LINK-PP
P/N: LPJF86261CNL
Compatible:
LINK-PP
Belfuse
Competitor P/N:
LPJF86261CNL
LPJF86274CNL
Shipping:
€ 27.408
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1630 in Stock .
Quantity:
Total Price:
€ 18.647
Add to wish

LINK-PP LPJF86261CNL 10/100 Base-T RJ45 Jacks With Magnetics for TV and Industrial PC (1x8 Port , Tab Down ,Without LED)


The LPJF86261CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as TV, Industrial PC,Media Player and Game Controller.


LINK-PP Part Number:
 LPJF86261CNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x8 PortSpeed
10/100 Base-T
Latch
DownCores per Port
3
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.589/14.97Package Length (Inches/mm)

0.865/21.97

Package Width (Inches/mm)
4.554/115.67
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 1x8 Port Jacks
