175254

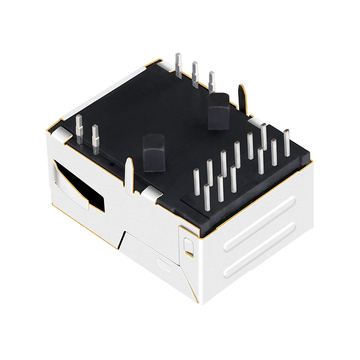

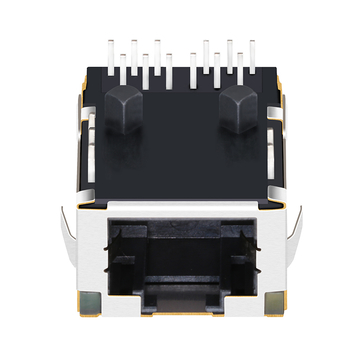

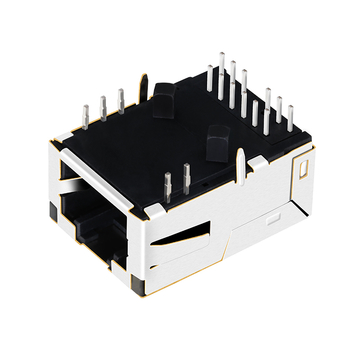

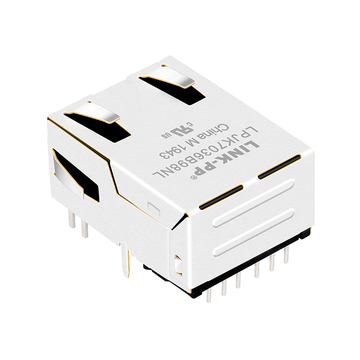

BelFuse L836-1JX1-43 Compatible LPJK7036B98NL RJ45 Low Profile Gigabit Mag Jack 1G Base-T Tab Up Orange&Green/Yellow LED
  • BelFuse L836-1JX1-43 Compatible LPJK7036B98NL RJ45 Low Profile Gigabit Mag Jack 1G Base-T Tab Up Orange&Green/Yellow LED thumb image 1
  • BelFuse L836-1JX1-43 Compatible LPJK7036B98NL RJ45 Low Profile Gigabit Mag Jack 1G Base-T Tab Up Orange&Green/Yellow LED thumb image 2
  • BelFuse L836-1JX1-43 Compatible LPJK7036B98NL RJ45 Low Profile Gigabit Mag Jack 1G Base-T Tab Up Orange&Green/Yellow LED thumb image 3
  • BelFuse L836-1JX1-43 Compatible LPJK7036B98NL RJ45 Low Profile Gigabit Mag Jack 1G Base-T Tab Up Orange&Green/Yellow LED thumb image 4
  • BelFuse L836-1JX1-43 Compatible LPJK7036B98NL RJ45 Low Profile Gigabit Mag Jack 1G Base-T Tab Up Orange&Green/Yellow LED thumb image 5

BelFuse L836-1JX1-43 Compatible LPJK7036B98NL RJ45 Low Profile Gigabit Mag Jack 1G Base-T Tab Up Orange&Green/Yellow LED

#175254
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

BelFuse L836-1JX1-43 Compatible LPJK7036B98NL RJ45 Low Profile Gigabit Mag Jack 1G Base-T Tab Up Orange&Green/Yellow LED

  • ￡  3.286

    5420 in Stock

 47 Reviews
0 Questions
Request Stock
10.8K Sold
￡  3.286
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
￡ 3.286
100
￡ 2.695
600
￡ 2.366
1200
￡ 1.808
6000
￡ 1.545
Manufacture: LINK-PP
P/N: LPJK7036B98NL
Compatible:
LINK-PP
BelFuse
Compatible P/N:
L836-1JX1-43
Shipping:
￡ 23.871
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
5420 in Stock .
Quantity:
Total Price:
￡ 3.286
Packaging Details:
0.01kg
Tray
50pcs
1200pcs
40*32*33cm
11.5kg
Add to wish

BelFuse L836-1JX1-43 Compatible LINK-PP LPJK7036B98NL 1000 Base-T LowProfile RJ45 Gigabit Mag Jack For Smart Camera ( Height 11.30mm,Orange&Green/Yellow LED,Tab Up)


The LPJK7036B98NL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Game Controller, Router .


LINK-PP Part Number:
 LPJK7036B98NL BelFuse Part Number
 L836-1JX1-43
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 12p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.445/11.30Package Length (Inches/mm)

0.957/24.30

Package Width (Inches/mm)
0.701/17.80
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Low-Profile RJ45 Gigabit MagJack
