Integrated RJ45 Connector
Single Port RJ45 Connector
10/100 Base-T RJ45 Connector
177994

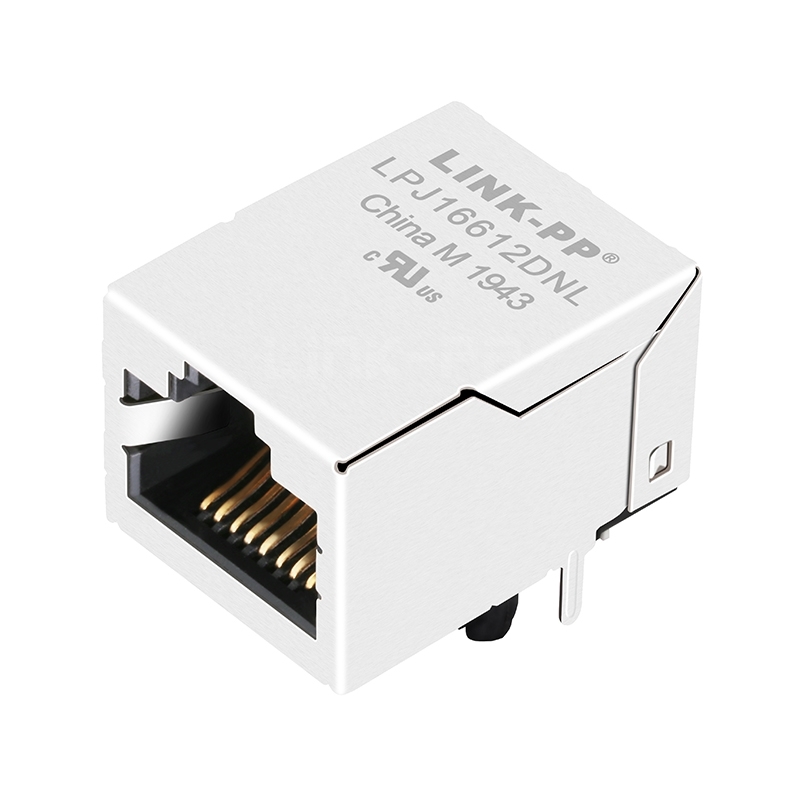

LPJ16612DNL 10/100 Base-T Single Port RJ45 ethernet jack with magnetics Tab Up Without Led
  • LPJ16612DNL 10/100 Base-T Single Port RJ45 ethernet jack with magnetics Tab Up Without Led thumb image 1
  • LPJ16612DNL 10/100 Base-T Single Port RJ45 ethernet jack with magnetics Tab Up Without Led thumb image 2
  • LPJ16612DNL 10/100 Base-T Single Port RJ45 ethernet jack with magnetics Tab Up Without Led thumb image 3
  • LPJ16612DNL 10/100 Base-T Single Port RJ45 ethernet jack with magnetics Tab Up Without Led thumb image 4
  • LPJ16612DNL 10/100 Base-T Single Port RJ45 ethernet jack with magnetics Tab Up Without Led thumb image 5

LPJ16612DNL 10/100 Base-T Single Port RJ45 ethernet jack with magnetics Tab Up Without Led

#177994
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJ16612DNL 10/100 Base-T Single Port RJ45 ethernet jack with magnetics Tab Up Without Led

  • ￥  349.907

    6700 in Stock

 13 Reviews
0 Questions
Request Stock
13.3K Sold
￥  349.907
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
￥ 349.907
100
￥ 287.011
600
￥ 252.035
1200
￥ 192.592
6000
￥ 164.521
Manufacture: LINK-PP
P/N: LPJ16612DNL
Compatible:
LINK-PP
Wurth
Competitor P/N:
LPJ16612DNL
Shipping:
￥ 4,423.742
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
6700 in Stock .
Quantity:
Total Price:
￥ 349.907
Packaging Details:
0.007kg
Tray
50pcs
1200pcs
32*30*31cm
8.5kg
Add to wish

LINK-PP LPJ16612DNL 10/100 Base-T RJ45 ethernet jack with magnetics for Industrial PC and Fieldbus System ( Single Port,Tab Up,Without Led)


The LPJ16612DNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Meters, Router, Automation and Network Firewall.


LINK-PP Part Number
 LPJ16612DNL
 Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet( NON PoE )
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Without Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.535/13.45Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.630/15.95Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 ethernet jack with magnetics
