Integrated RJ45 Connector
Single Port RJ45 Connector
1000 Base-T RJ45 Connector
178850

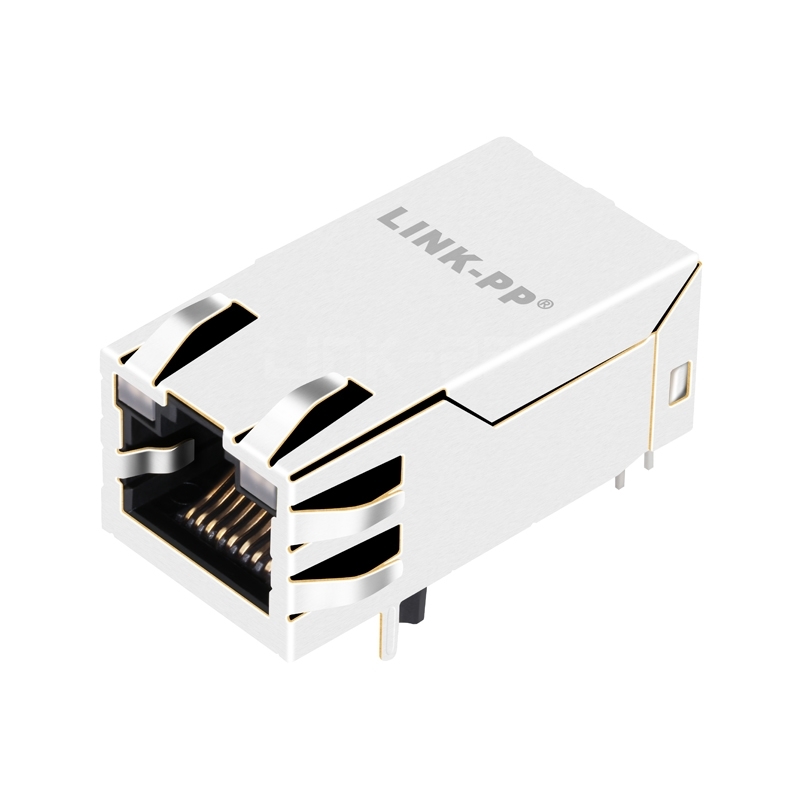

LPJK0036A4NL Shielded RJ45 Mag jack connector 1x1 Port 1000 Base-T Tab Up Green&Yellow/Green&Yellow Led
  • LPJK0036A4NL Shielded RJ45 Mag jack connector 1x1 Port 1000 Base-T Tab Up Green&Yellow/Green&Yellow Led thumb image 1
  • LPJK0036A4NL Shielded RJ45 Mag jack connector 1x1 Port 1000 Base-T Tab Up Green&Yellow/Green&Yellow Led thumb image 2
  • LPJK0036A4NL Shielded RJ45 Mag jack connector 1x1 Port 1000 Base-T Tab Up Green&Yellow/Green&Yellow Led thumb image 3
  • LPJK0036A4NL Shielded RJ45 Mag jack connector 1x1 Port 1000 Base-T Tab Up Green&Yellow/Green&Yellow Led thumb image 4
  • LPJK0036A4NL Shielded RJ45 Mag jack connector 1x1 Port 1000 Base-T Tab Up Green&Yellow/Green&Yellow Led thumb image 5

LPJK0036A4NL Shielded RJ45 Mag jack connector 1x1 Port 1000 Base-T Tab Up Green&Yellow/Green&Yellow Led

#178850
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJK0036A4NL Shielded RJ45 Mag jack connector 1x1 Port 1000 Base-T Tab Up Green&Yellow/Green&Yellow Led

  • A$  6.792

    1100 in Stock

 14 Reviews
0 Questions
Request Stock
29K Sold
A$  6.792
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
A$ 6.792
100
A$ 5.571
600
A$ 4.891
1200
A$ 3.736
6000
A$ 3.193
Manufacture: LINK-PP
P/N: LPJK0036A4NL
Compatible:
LINK-PP
Halo
Competitor P/N:
LPJK0036A4NL
Shipping:
A$ 45.384
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1100 in Stock .
Quantity:
Total Price:
A$ 6.792
Packaging Details:
0.011kg
Tray
60pcs
840pcs
37*30*30cm
9kg
Add to wish

LINK-PP LPJK0036A4NL Shielded RJ45 Mag jack connector 1000 Base-T (Length 32.5mm,1x1 Port, Tab Up, Green&Yellow/Green&Yellow Led)


The LPJK0036A4NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, , Ethernet Control and Game Controller.


LINK-PP Part Number
 LPJK0036A4NL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 12p8c (RJ45, Ethernet) Application-Lan
 Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green&Yellow/Green&Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches)
0.650/16.50Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Shielded RJ45
  2. RJ45 Mag jack
  3. link-pp
  4. magjack connector
  5. gigabit rj45
  6. Gigabit Magnetics Jack
  7. gigabit ethernet jack
  8. rj45 pcb connector
  9. rj45 connector port

Download

Product Drawing
