Integrated RJ45 Connector
Stacked RJ45 Connector
2x4 Port RJ45 Connector
104458

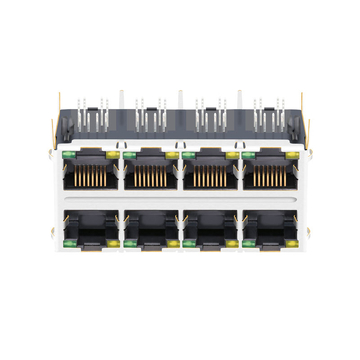

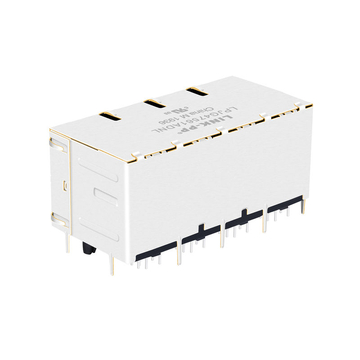

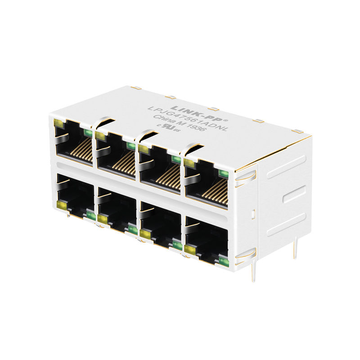

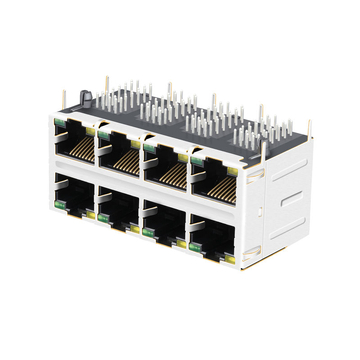

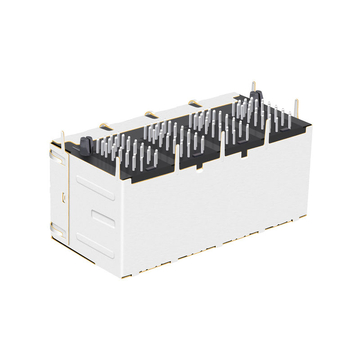

LPJG47561ADNL 1000 Base-T Integrated Magnetics 2x4 Port RJ45 Modular Jack
  • LPJG47561ADNL 1000 Base-T Integrated Magnetics 2x4 Port RJ45 Modular Jack thumb image 1
  • LPJG47561ADNL 1000 Base-T Integrated Magnetics 2x4 Port RJ45 Modular Jack thumb image 2
  • LPJG47561ADNL 1000 Base-T Integrated Magnetics 2x4 Port RJ45 Modular Jack thumb image 3
  • LPJG47561ADNL 1000 Base-T Integrated Magnetics 2x4 Port RJ45 Modular Jack thumb image 4
  • LPJG47561ADNL 1000 Base-T Integrated Magnetics 2x4 Port RJ45 Modular Jack thumb image 5

LPJG47561ADNL 1000 Base-T Integrated Magnetics 2x4 Port RJ45 Modular Jack

#104458
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJG47561ADNL 1000 Base-T Integrated Magnetics 2x4 Port RJ45 Modular Jack

  • $  25.397

    2369 in Stock

 4 Reviews
1 Questions
Request Stock
10K Sold
$  25.397
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 25.397
100
$ 21.08
600
$ 18.032
1200
$ 16.001
6000
$ 14.223
P/N: LPJG47561ADNL
Compatible:
LINK-PP
XFMRS
Competitor P/N:
LPJG47561ADNL
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
2369 in Stock .
Quantity:
Total Price:
$ 25.397
Packaging Details:
0.059kg
Tray
12pcs
216pcs
37*30*30cm
12.7kg
Add to wish

2x4 Port Ethernet RJ45 Jack with 10/100/1000 Base-T Integrated Magnetics, Yellow/Green LED,Tab Up,RoHS

LINK-PP Part Number:
 LPJG47561ADNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 10p10c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
2x4 Port
Speed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow/Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.116/28.35

Package Width (Inches/mm)
2.330/59.18
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. RJ45 Female Connector

Download

LPJG47561ADNL Drawing

3D Model
