Integrated RJ45 Connector
Vertical RJ45 Connector
1000 Base-T RJ45 Connector
172472

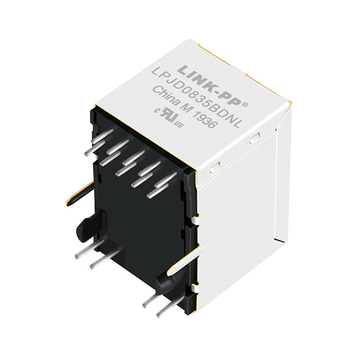

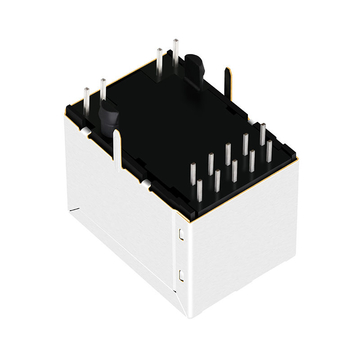

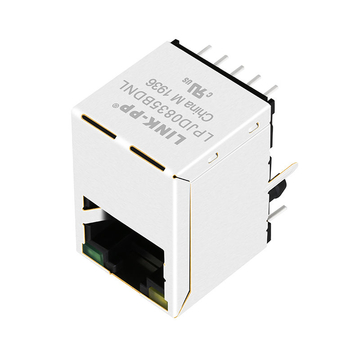

LPJD0835BDNL 1000 Base-T Vertical RJ45 Jack With Magnetics Yellow/Green LED
  • LPJD0835BDNL 1000 Base-T Vertical RJ45 Jack With Magnetics Yellow/Green LED thumb image 1
  • LPJD0835BDNL 1000 Base-T Vertical RJ45 Jack With Magnetics Yellow/Green LED thumb image 2
  • LPJD0835BDNL 1000 Base-T Vertical RJ45 Jack With Magnetics Yellow/Green LED thumb image 3
  • LPJD0835BDNL 1000 Base-T Vertical RJ45 Jack With Magnetics Yellow/Green LED thumb image 4
  • LPJD0835BDNL 1000 Base-T Vertical RJ45 Jack With Magnetics Yellow/Green LED thumb image 5

LPJD0835BDNL 1000 Base-T Vertical RJ45 Jack With Magnetics Yellow/Green LED

#172472
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJD0835BDNL 1000 Base-T Vertical RJ45 Jack With Magnetics Yellow/Green LED

  • $  4.85

    2500 in Stock

 97 Reviews
0 Questions
Request Stock
800 Sold
$  4.85
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 4.85
100
$ 3.977
600
$ 3.492
1200
$ 2.668
6000
$ 2.28
Manufacture: LINK-PP
P/N: LPJD0835BDNL
Compatible:
LINK-PP
Hanrun
Competitor P/N:
LPJD0835BDNL
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
2500 in Stock .
Quantity:
Total Price:
$ 4.85
Packaging Details:
0.012kg
Tray
40pcs
640pcs
37*30*30cm
7.5kg
Add to wish

LINK-PP LPJD0835BDNL 10/100/1000 Base-T Vertical RJ45 Jack With Magnetics For Embedded Main Board (Top Entry,Yellow/Green LED)


The LPJD0835BDNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Smart Meters,Patient Care.


LINK-PP Part Number:
 LPJD0835BDNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Yellow/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.660/16.76Package Length (Inches/mm)

0.911/23.15

Package Width (Inches/mm)
0.634/16.10
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Vertical RJ45 Jack

Download

LPJD0835BDNL Drawing

3D Model
