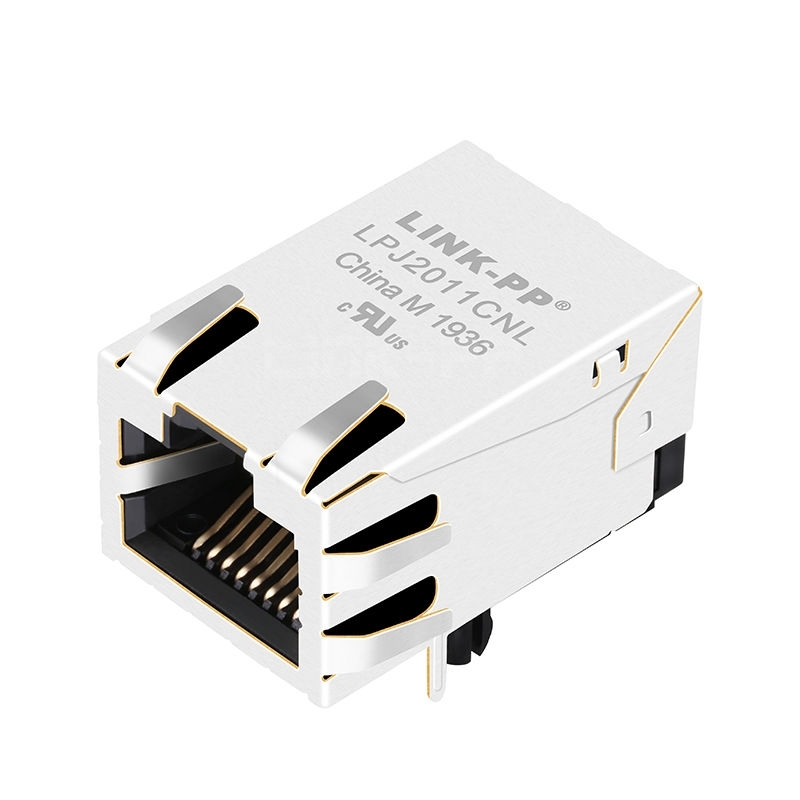

Belfuse 08B1-1XX1-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Jack 1x1 Port Tab Up Without Led
  • Belfuse 08B1-1XX1-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Jack 1x1 Port Tab Up Without Led thumb image 1
  • Belfuse 08B1-1XX1-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Jack 1x1 Port Tab Up Without Led thumb image 2
  • Belfuse 08B1-1XX1-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Jack 1x1 Port Tab Up Without Led thumb image 3
  • Belfuse 08B1-1XX1-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Jack 1x1 Port Tab Up Without Led thumb image 4
  • Belfuse 08B1-1XX1-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Jack 1x1 Port Tab Up Without Led thumb image 5

Belfuse 08B1-1XX1-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Jack 1x1 Port Tab Up Without Led

#172254
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

Belfuse 08B1-1XX1-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Jack 1x1 Port Tab Up Without Led

  • $  3.125

    1355 in Stock

 53 Reviews
0 Questions
Request Stock
4.5K Sold
$  3.125
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 3.125
100
$ 2.563
600
$ 2.25
1200
$ 1.719
6000
$ 1.469
Manufacture: LINK-PP
P/N: LPJ2011CNL
Compatible:
LINK-PP
Belfuse
Competitor P/N:
08B0-1V1T-06-F
08B1-1X1T-06-F
08B1-1XX1-06-F
0811-1X1T-06
0811-1X1T-06-F
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
1355 in Stock .
Quantity:
Total Price:
$ 3.125
Packaging Details:
0.01kg
Tray
50pcs
1200pcs
40*32*33cm
12.3kg
Add to wish

Belfuse 08B1-1XX1-06-F Compatible LINK-PP LPJ2011CNL 10/100 Base-T RJ45 Mag Jack for Industrial PC and The Handheld Device (1x1 Port, Tab Up, Without Led)


The LPJ2011CNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Network Card, The Handheld Device and Game Controller.


LINK-PP Part Number:
 LPJ2011CNL Belfuse Part Number 08B1-1XX1-06-F
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 6p8c (RJ45, Ethernet) Application-Lan
 Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UPCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.522/13.25Package Length (Inches/mm)

1.008/25.60

Package Width (Inches)
0.661/16.80Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Amp RJ45 Jacks

Download

LPJ2011CNL Drawing

3D Model
