Integrated RJ45 Connector
Vertical RJ45 Connector
10/100 Base-T RJ45 Connector
178569

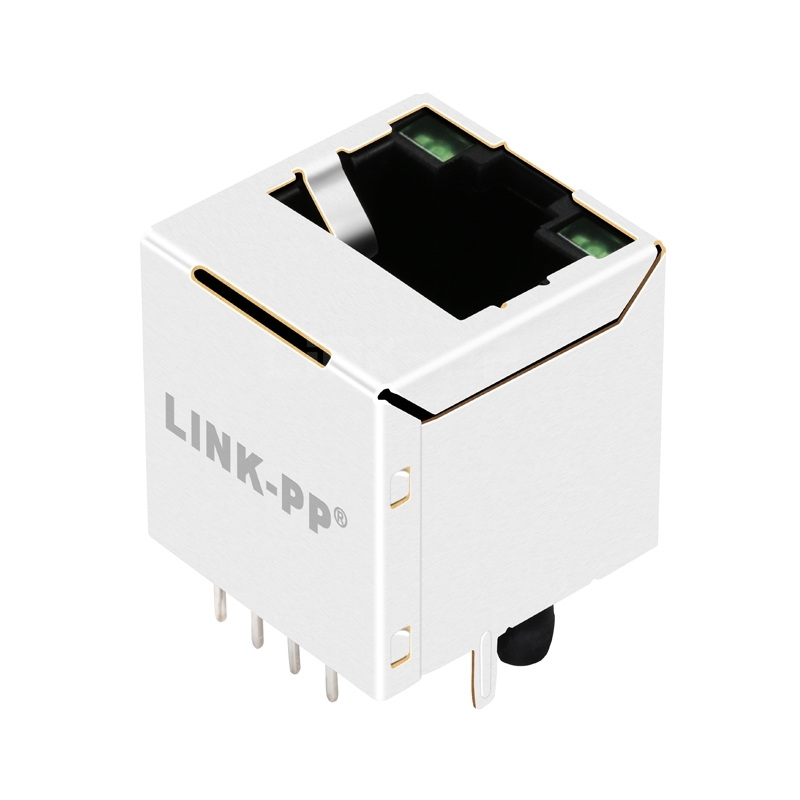

LPJD0012NFNL 10/100Base-T Vertical RJ45 ethernet pcb Connector Green/Green LED
  • LPJD0012NFNL 10/100Base-T Vertical RJ45 ethernet pcb Connector Green/Green LED thumb image 1
  • LPJD0012NFNL 10/100Base-T Vertical RJ45 ethernet pcb Connector Green/Green LED thumb image 2
  • LPJD0012NFNL 10/100Base-T Vertical RJ45 ethernet pcb Connector Green/Green LED thumb image 3
  • LPJD0012NFNL 10/100Base-T Vertical RJ45 ethernet pcb Connector Green/Green LED thumb image 4
  • LPJD0012NFNL 10/100Base-T Vertical RJ45 ethernet pcb Connector Green/Green LED thumb image 5

LPJD0012NFNL 10/100Base-T Vertical RJ45 ethernet pcb Connector Green/Green LED

#178569
For Order Over $300 Get $15.00 Off, Code:
Linkpp15
For Order Over $2000 Get $50.00 Off, Code:
Linkpp50
For Order Over $3000 Get $100.00 Off, Code:
Linkpp100

LPJD0012NFNL 10/100Base-T Vertical RJ45 ethernet pcb Connector Green/Green LED

  • $  3.116

    2230 in Stock

 23 Reviews
0 Questions
Request Stock
7.8K Sold
$  3.116
Free shipping over $600, If you need a more favorable price, please contact us directly.
Qty (pcs) :
Unit Price :
1
$ 3.116
100
$ 2.556
600
$ 2.244
1200
$ 1.714
6000
$ 1.465
Manufacture: LINK-PP
P/N: LPJD0012NFNL
Compatible:
LINK-PP
Belfuse
Competitor P/N:
LPJD0012NFNL
Shipping:
$ 29.47
to United States Via Fedex IP
Estimated delivery time : 3-6 days. See details
Stock:
2230 in Stock .
Quantity:
Total Price:
$ 3.116
Packaging Details:
0.008kg
Tray
54pcs
1296pcs
36.5*33*32cm
10kg
Add to wish

LINK-PP LPJD0012NFNL 10/100Base-T Vertical RJ45 ethernet Connector pcb mount For Embedded Main Board (Top Entry,Green/Green LED)


The LPJD0012NFNL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as 1/0 Controller, Alarm, Router.


LINK-PP Part Number
 LPJD0012NFNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 - Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
UpCores per Port
4
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Green/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.665/16.90Package Length (Inches/mm)

0.657/16.70

Package Width (Inches/mm)
0.630/16.00
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

  1. Vertical RJ45 Connector

Download

Prodcut Drawing
