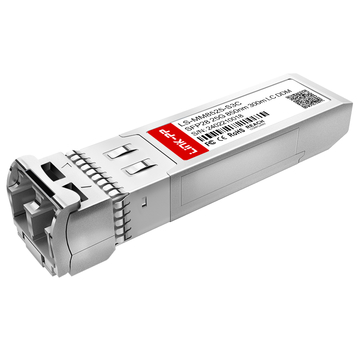

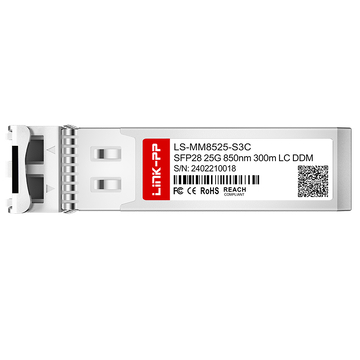

DELL 407-BBWK Compatible LS-MM8525-S3C SFP28 25GBASE-ESR 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module

Name: DELL 407-BBWK Compatible LS-MM8525-S3C SFP28 25GBASE-ESR 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module
Brand: link-pp
SKU: 182600
Price: 19.86 USD
Availability: InStock
Rating: 5 (22 reviews)

#182600

For Order Over $300 Get $15.00 Off, Code:

Linkpp15

For Order Over $2000 Get $50.00 Off, Code:

Linkpp50

For Order Over $3000 Get $100.00 Off, Code:

Linkpp100

: DELL 407-BBWK Compatible LS-MM8525-S3C SFP28 25GBASE-ESR 850nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module

22 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

22 Reviews

0 Questions

Request Stock

450 Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 19.86

100

$ 18.867

1000

$ 18.272

3000

$ 17.676

6000

$ 17.08

Manufacture: LINK-PP

P/N: LS-MM8525-S3C

Compatible:: Cisco; LINK-PP; Arista; Avago; Brocade; Chelsio; DELL; Dell; Edge-Core; FS; H3C; HW; Intel; Juniper; Mellanox

Competitor P/N:: 407-BBWK | 300m; 407-BBWK-I | 100m

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

You May Also Like

LP11B000001 SFP+ 1x1 Receptacle Connector Solder Surface Mount 20 Position, Right Angle

$ 0.41 ~~$ 0.00~~
398 Sold
Pulse E81M0-002-01-LT Compatible LP11B000001 SFP+ 1x1 Receptacle Connector Solder Surface Mount 20 Position, Right Angle

$ 0.41 ~~$ 0.00~~
498 Sold
LP11BC02030 SFP+ Cage With Heat Sink EMI Spring Finger Press-Fit Through Hole, Right Angle

$ 1.25 ~~$ 0.00~~
1.7K Sold
LP11BCS2030 SFP+ 1x1 Cage With Heat Sink Sorder Through Hole, Right Angle

$ 1.25 ~~$ 0.00~~
590 Sold
LINK-PP LP11BCS2201 1x1 Port SFP+ Cage With Light pipe

$ 1.25 ~~$ 0.00~~
6.2K Sold
Pulse E81M0-002-02-LT 20 Position SFP+ 1x1 Receptacle Connector Solder Surface Mount Right Angle Compatible LINK-PP LP11B000001

$ 0.41 ~~$ 0.00~~
560 Sold
1-2227303-2 CONN SFP CAGE 1 Port PRESS-FIT R/A Through Hole Solder Mount

$ 1.15 ~~$ 0.00~~
490 Sold
LINK-PP LP11BC02201 1x1 Port SFP+ Cage With Lightpipe

$ 1.25 ~~$ 0.00~~
9.1K Sold
LINK-PP LP11BC02000D SFP+ 1x1 Cage With Grounding Pin

$ 1.25 ~~$ 0.00~~
3.5K Sold
TE 2007198-1 Compatible LINK-PP LP11BC02000D SFP+ 1x1 Cage Press-Fit With Grounding Pin

$ 1.25 ~~$ 0.00~~
3.5K Sold
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe

$ 1.25 ~~$ 0.00~~
9.8K Sold
LP11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole Right Angle

$ 1.25 ~~$ 0.00~~
1.1K Sold
LINK-PP LP11BCS2101 SFP+ Cage Single Port With Light pipe

$ 1.25 ~~$ 0.00~~
6.8K Sold
LP11AC02060 SFP 1x1 Cage With EMI Spring Finger Heat Sink Press-Fit Through Hole

$ 5.2 ~~$ 0.00~~
1.3K Sold
LP11BC01000 SFP+ 1x1 Cage Press-Fit With EMI Spring Finger

$ 1.25 ~~$ 0.00~~
800 Sold

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

DELL 407-BBWK Compatible LINK-PP LS-MM8525-S3C SFP28 25GBASE-ESR Duplex LC/UPC Optical Transceiver Module(MMF, 850nm, 300m, LC, DOM)

The LS-MM8525-S3C SFP28 transceivers are high performance, cost effective modules supporting data rate of 25.78125Gbps and Maximum link length of 70m on OM3 MMF or 100m on OM4 MMF. The transceiver consists of three sections: a 850nm Oxide VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

LINK-PP Part Number	LS-MM8525-S3C	DELL Compatible	407-BBWK
Form Factor	SFP28	Max Data Rate	25Gbps
Wavelength	850nm	Max Cable Distance	300m@OM3/400m@OM4
Connector	Duplex LC	Media	MMF
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-6 to 3dBm	RX Power	-11 to 3dBm
Receiver Sensitivity	-10.3dBm	Receiver Overload	2dBm
DOM	Supported	Case Temperature range	0°C to +70°C
Protocols		SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432	Warranty	5 Years
