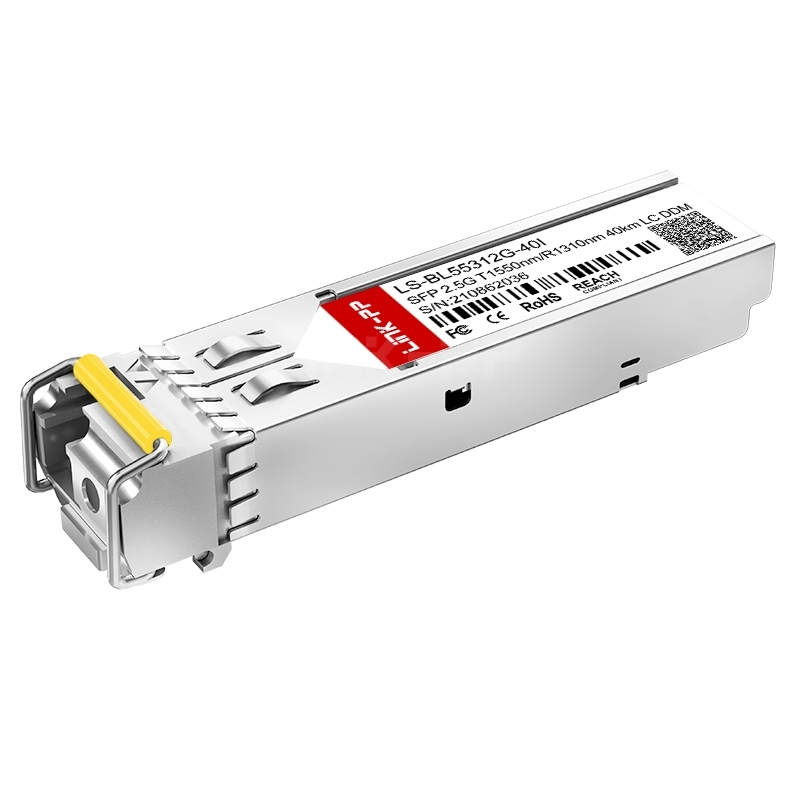

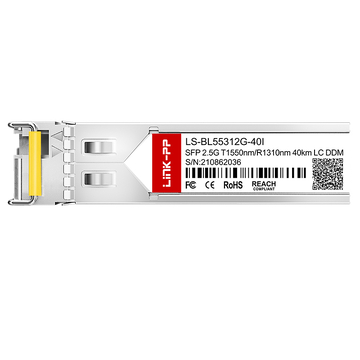

The LINK-PP LS-BL55312G-40I is a high-performance 2.5G BiDi SFP transceiver engineered for robust single-mode fiber network applications. This industrial optical module operates perfectly within extreme temperatures from -40°C to +85°C. Powered by a single 3.3V supply, it delivers exceptional telecommunications reliability for enterprise router and server interface connectivity.
LINK-PP Part Number
LS-BL55312G-40I
Vendor Name
LINK-PP
Form Factor
SFP
Max Data Rate
2.5Gbps
Wavelength
1550nm-TX / 1310nm-RX
Max Cable Distance
40km
Connector
Simplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
Receiver Sensitivity
-20dBm
DDM/DOM
Supported
TX Power
-2 to +4dBm
RX Power
-23 to -1dBm
Operating Temperature Range
-40 to 85°C
Protocols
MSA Compliant
Key Features of LINK-PP LS-BL55312G-40I 2.5G BiDi SFP
Delivering a seamless 2.5Gbps data rate, this hot-pluggable SFP footprint transceiver integrates seamlessly into modern infrastructure. It is fully SFP MSA compliant and meets SFF-8472 standards, ensuring outstanding interoperability. The built-in Class I laser safety design guarantees secure, efficient, and cost-effective fiber optic networking.
This advanced optical transceiver module is expertly crafted to support SDH STM-16 and SONET OC-48 systems. The 2x Fiber Channel capability provides network administrators with superior bandwidth optimization for fast, uninterrupted, and secure data transmission.
LS-BL55312G-40I: 2.5G Connectivity for Video Conferencing Systems
Providing ultra-reliable high-speed connectivity, this SFP device ensures seamless video conferencing experiences across large corporate networks. The stable 2.5G bandwidth minimizes latency and jitter, delivering crystal-clear audiovisual data transfer for critical real-time enterprise communications.
LS-BL55312G-40I Module with 1550nm-TX and 1310nm-RX Wavelength
Utilizing advanced WDM technology, the transceiver features a premium 1550nm DFB laser transmitter and a highly sensitive 1310nm PIN receiver. This precise wavelength configuration maximizes signal integrity and effectively prevents cross-talk within your optical links.
Designed for long-haul network deployments, this powerful component easily achieves up to a 40km reach over standard single-mode fiber. This impressive SMF transmission capability significantly reduces the need for costly repeaters in extensive regional infrastructures.
LS-BL55312G-40I Module with Simplex LC Interface
Equipped with a standardized simplex LC receptacle, the design allows full bidirectional communication over a single fiber strand. This efficient single-fiber architecture instantly doubles your existing cabling capacity while lowering overall network deployment expenditures.
LS-BL55312G-40I Module with DOM for Real-Time Monitoring
Featuring built-in Digital Optical Monitoring, administrators gain real-time performance tracking capabilities. The intuitive I2C interface allows continuous surveillance of crucial parameters like module temperature, voltage, laser bias current, and optical power to prevent unexpected downtime.
LINK-PP LS-BL55312G-40I 2.5G SFP Certification
Demonstrating strict industry compliance, this certified SFP transceiver meets the highest global regulatory standards, guaranteeing safe, environmentally friendly, and legally compliant integration into any commercial telecommunications environment.
Every unit undergoes a rigorous quality control regimen in our advanced optical testing facilities. We execute comprehensive diagnostic evaluations to verify optimal functionality before it ever reaches customers.
LS-BL55312G-40I Quality Certifications
This exceptional module proudly holds CE, FCC, UKCA, UL, REACH, and RoHS certifications. These global endorsements reflect our unwavering commitment to producing exceptionally safe, sustainable, and reliable network hardware.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-BL55312G-40I Certified for Reliable Host-Device Compatibility
Adhering strictly to MSA standards, this transceiver is certified for broad switch compatibility. Network engineers can trust its seamless plug-and-play integration with major routing and switching equipment worldwide.
Rigorous Testing Ensures Reliable SFP Performance
Our meticulous performance validation procedures guarantee maximum network reliability. Each module must pass multiple stressful diagnostic stages to ensure flawless data handling.
Optical Spectrum Test
We verify precise central wavelength accuracy and side-mode suppression for optimal optical signal purity.
Eye Pattern Test
Technicians evaluate the optical eye diagram to confirm flawless signal integrity and minimal jitter.
Environmental chambers validate exceptional thermal stability across the entire -40°C to +85°C industrial range.
Product Shipping for LINK-PP LS-BL55312G-40I 2.5G SFP
We prioritize secure logistics to ensure your high-speed networking equipment arrives safely. Our comprehensive global shipping process is designed for maximum product protection.
Experience effortless plug-and-play installation with this versatile module. Simply insert the transceiver into any compatible router slot, engage the optical fiber connection, and immediately activate high-capacity bidirectional telecommunications without requiring complex software configurations.
LS-BL55312G-40I Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS-BL55312G-40I modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
This transceiver requires standard OS2 single-mode fiber (9/125μm SMF) terminated with a Simplex LC connector. Because this unit transmits at 1550nm and receives at 1310nm (1550nm-TX / 1310nm-RX), the remote end must be paired with an opposing 1310nm-TX / 1550nm-RX 2.5G BiDi 40km module (such as the LINK-PP LS-BL31552G-40I) to form a complete bidirectional link over a single fiber core. by LINK-PP Technical Support
Yes. The LS-BL55312G-40I transceivers strictly adhere to SFP Multi-Source Agreement (MSA) and SFF-8472 standards. We custom-code and test EEPROM compatibility in-house to ensure seamless plug-and-play operation across Cisco, MikroTik, Ubiquiti UniFi/EdgeSwitch, Juniper, Edgecore, and other major enterprise networking hardware without CLI warnings or port-lockout issues. by LINK-PP Technical Support
Yes, we provide tiered volume wholesale pricing starting from 100-piece orders, scaling down to lower unit pricing for large deployments. For regional ISP rollouts, government tenders, or recurring enterprise orders, please contact our B2B account team to receive a formal commercial quotation, volume discounts, and Net Terms payment options. by LINK-PP Technical Support
The module delivers 100% OEM-equivalent performance. It incorporates a premium 1550nm DFB laser transmitter, a high-sensitivity PIN receiver (-20dBm sensitivity), and an integrated DDM/DOM microcontroller. You obtain identical transmission budgets (-2 to +4dBm TX power), zero-packet-loss reliability up to 40km, and full telemetry diagnostics at a fraction of the OEM cost, backed by our 5-year warranty. by LINK-PP Technical Support
