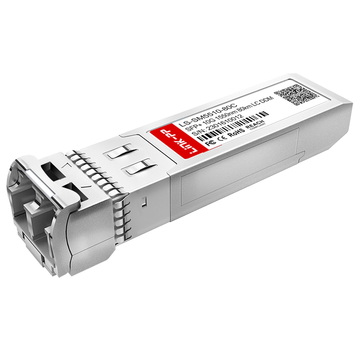

Fortinet FG-TRAN-SFP+LR Compatible LS-SM5510-80C SFP+ 10GBASE-ZR 1550nm 80km SMF Optical Transceiver Module DOM Duplex LC/UPC

Name: Fortinet FG-TRAN-SFP+LR Compatible LS-SM5510-80C SFP+ 10GBASE-ZR 1550nm 80km SMF Optical Transceiver Module DOM Duplex LC/UPC
Brand: link-pp
SKU: 182995
Price: 155.33 USD
Availability: InStock
Rating: 5 (15 reviews)

#182995

For Order Over $300 Get $15.00 Off, Code:

Linkpp15

For Order Over $2000 Get $50.00 Off, Code:

Linkpp50

For Order Over $3000 Get $100.00 Off, Code:

Linkpp100

: Fortinet FG-TRAN-SFP+LR Compatible LS-SM5510-80C SFP+ 10GBASE-ZR 1550nm 80km SMF Optical Transceiver Module DOM Duplex LC/UPC

15 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

15 Reviews

0 Questions

Request Stock

1.2K Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 155.33

100

$ 147.564

1000

$ 142.904

3000

$ 138.244

6000

$ 133.584

Manufacture: LINK-PP

P/N: LS-SM5510-80C

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Arista; Avaya; Brocade; Ciena; DELL; Extreme; Fortinet; Generic; H3C; HPE; HW; Intel; Juniper; Lenovo; Netgear; ProCurve

Compatible P/N:: FN-TRAN-SFP+ER | 40km; FG-TRAN-SFP+LR | 80km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

You May Also Like

LP11B000001 SFP+ 1x1 Receptacle Connector Solder Surface Mount 20 Position, Right Angle

$ 0.41 ~~$ 0.00~~
398 Sold
LP11AC02060 SFP 1x1 Cage With EMI Spring Finger Heat Sink Press-Fit Through Hole

$ 5.2 ~~$ 0.00~~
1.3K Sold
LINK-PP LP11BC02201 1x1 Port SFP+ Cage With Lightpipe

$ 1.25 ~~$ 0.00~~
9.1K Sold
Pulse E81M0-002-02-LT 20 Position SFP+ 1x1 Receptacle Connector Solder Surface Mount Right Angle Compatible LINK-PP LP11B000001

$ 0.41 ~~$ 0.00~~
560 Sold
LINK-PP LP11BCS2201 1x1 Port SFP+ Cage With Light pipe

$ 1.25 ~~$ 0.00~~
6.2K Sold
Pulse E81M0-002-01-LT Compatible LP11B000001 SFP+ 1x1 Receptacle Connector Solder Surface Mount 20 Position, Right Angle

$ 0.41 ~~$ 0.00~~
498 Sold
LP11BCS2030 SFP+ 1x1 Cage With Heat Sink Sorder Through Hole, Right Angle

$ 1.25 ~~$ 0.00~~
590 Sold
LINK-PP LP11BCS2101 SFP+ Cage Single Port With Light pipe

$ 1.25 ~~$ 0.00~~
6.8K Sold
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe

$ 1.25 ~~$ 0.00~~
9.8K Sold
TE 2007198-1 Compatible LINK-PP LP11BC02000D SFP+ 1x1 Cage Press-Fit With Grounding Pin

$ 1.25 ~~$ 0.00~~
3.5K Sold
1-2227303-2 CONN SFP CAGE 1 Port PRESS-FIT R/A Through Hole Solder Mount

$ 1.15 ~~$ 0.00~~
490 Sold
LP11BC02030 SFP+ Cage With Heat Sink EMI Spring Finger Press-Fit Through Hole, Right Angle

$ 1.25 ~~$ 0.00~~
1.7K Sold
LP11BC01000 SFP+ 1x1 Cage Press-Fit With EMI Spring Finger

$ 1.25 ~~$ 0.00~~
800 Sold
LINK-PP LP11BC02000D SFP+ 1x1 Cage With Grounding Pin

$ 1.25 ~~$ 0.00~~
3.5K Sold
LP11BC02050 SFP+ 1x1 Cage With Heat Sink Press-Fit Through Hole Right Angle

$ 1.25 ~~$ 0.00~~
1.1K Sold

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

Fortinet FG-TRAN-SFP+LR Compatible LINK-PP LS-SM5510-80C SFP+ 10GBASE-ZR Optical Transceiver Module Duplex LC/UPC (SMF,1550nm,80km, DOM)

The LS-SM5510-80C SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

LINK-PP Part Number	LS-SM5510-80C	Fortinet Compatible	FG-TRAN-SFP+LR
Part Status	Active	Form Factor	SFP+
Max Data Rate	10.7Gbps	Wavelength	1550nm
Max Cable Distance	80km	Connector	Duplex LC
Media	SMF	Receiver Sensitivity	<-23dBm
TX Power	-1 to +4dBm	RX Power	-23 to -6dBm
Operating case temperature	0 to 70°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI
